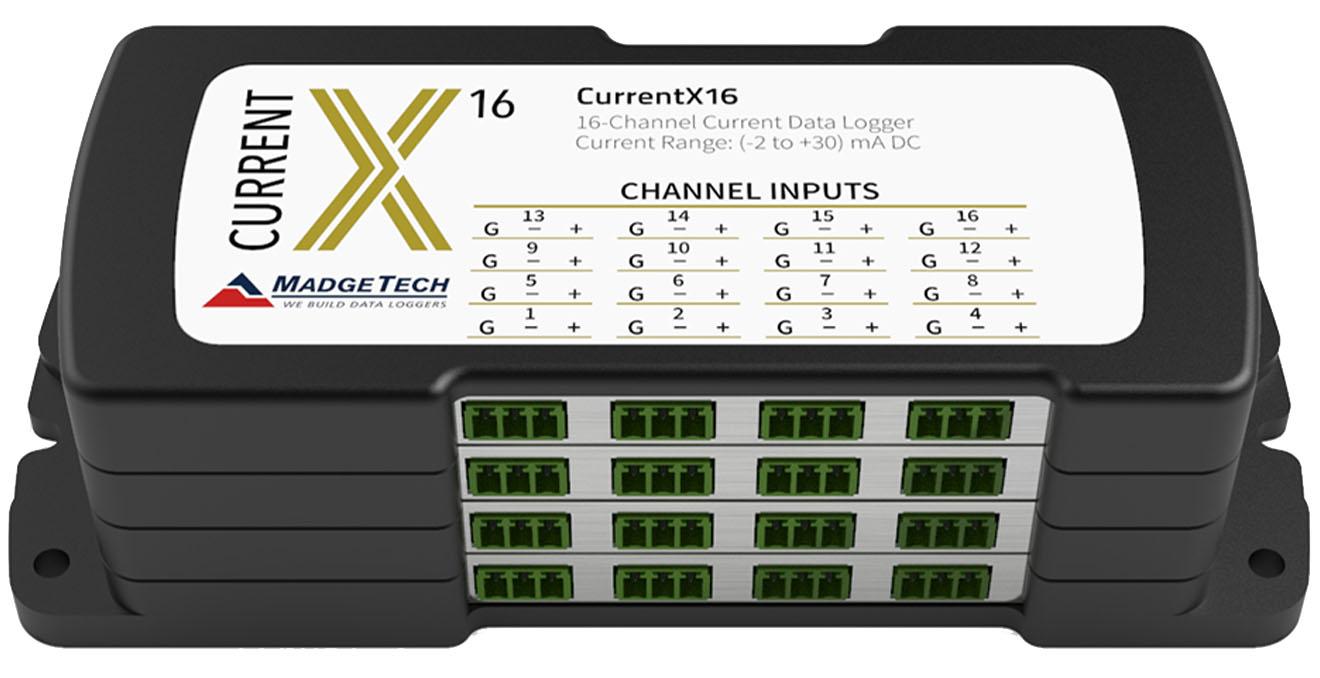

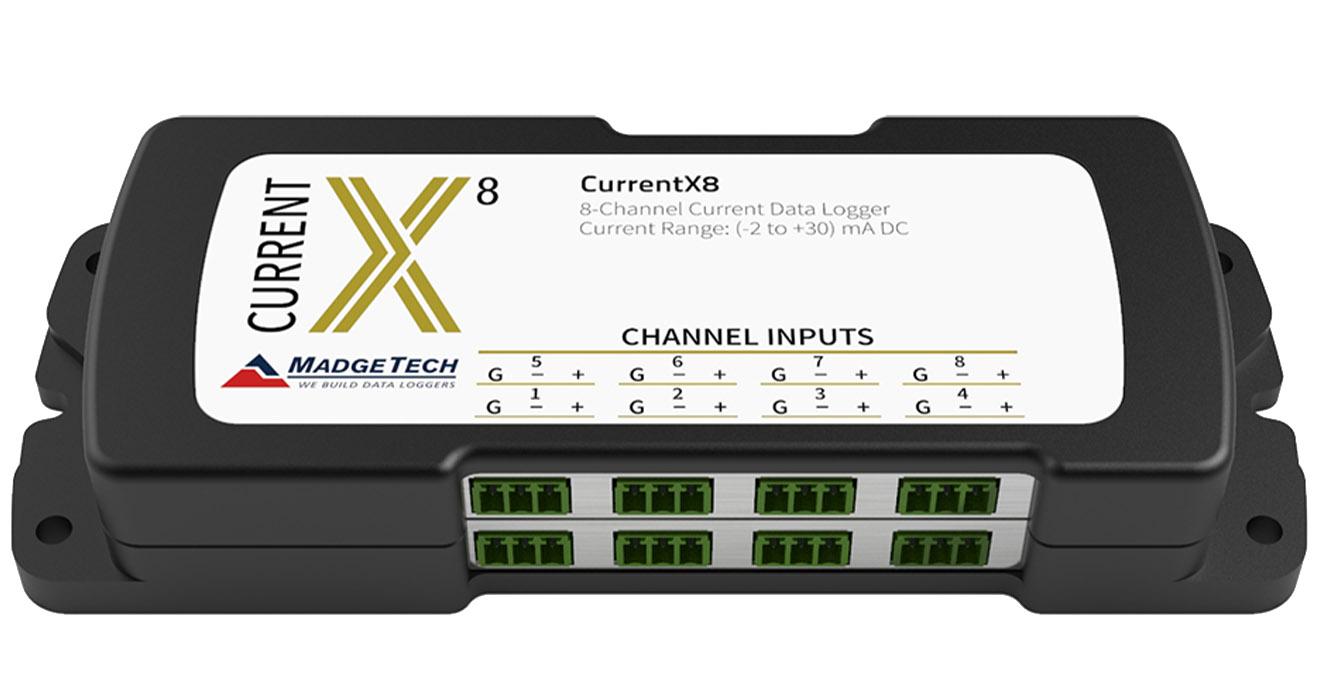

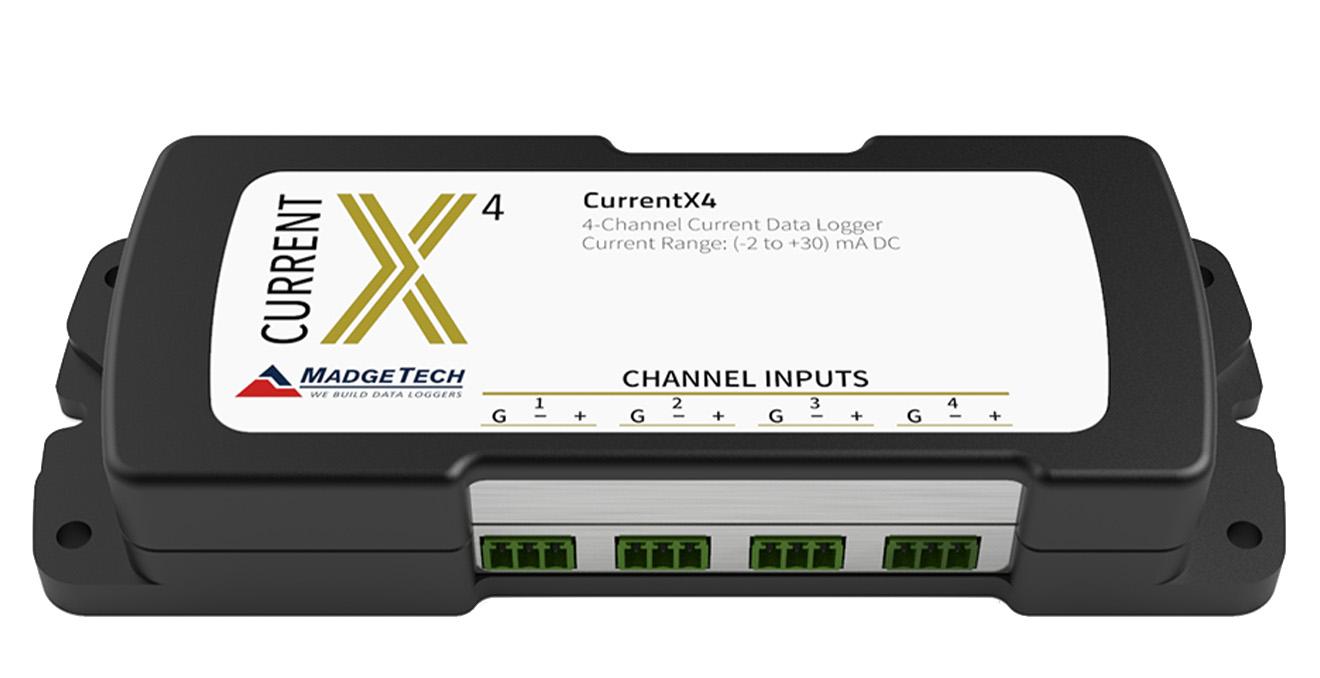

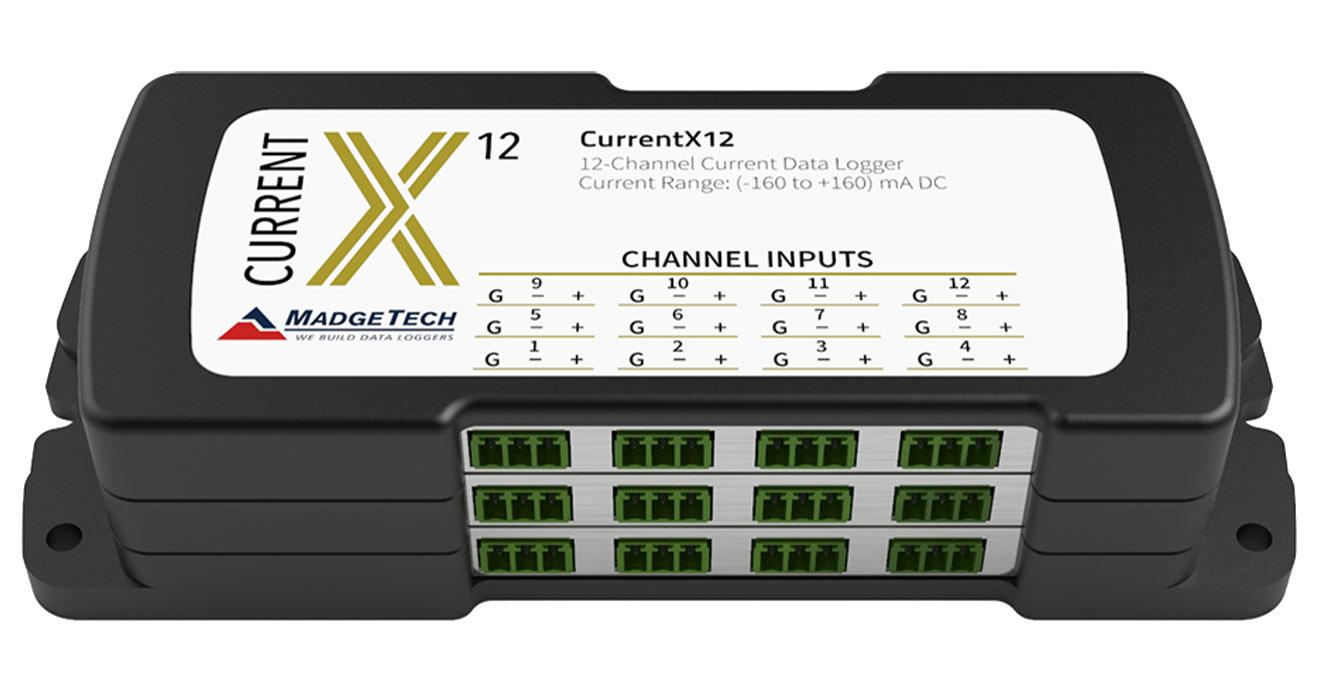

The MadgeTech CurrentX Series is a battery-powered DC current data logger available in 4, 8, 12, or 16 channel configurations. Reading rate up to 4Hz with 16-bit resolution. Current ranges: 30mA, 160mA, and 3A. Non-volatile solid state memory retains data if battery discharges.

Features user-replaceable battery with 18-month typical life, programmable engineering units, and channel enable/disable to maximize memory. Each channel can be named with up to 10 characters for easy identification. USB-A to Micro USB connection for data download and configuration.

MadgeTech Software provides graphical, tabular, and statistical analysis with automatic Excel export option. The software allows for simple starting, stopping, and downloading. Data can be viewed in multiple units using the Engineering Units function.

Key Features

• Channel options: 4, 8, 12, or 16
• Reading rate: up to 4Hz
• Current ranges: 30mA, 160mA, 3A
• 16-bit resolution
• Black anodized aluminum construction
• 18 month battery life (user-replaceable)
• Programmable engineering units
• Channel naming (up to 10 characters)
• Channel enable/disable to maximize memory
• USB-A to Micro USB connection

Applications

• Process control monitoring
• Battery discharge testing
• Current loop monitoring
• Industrial automation
• Multiple device current profiling
