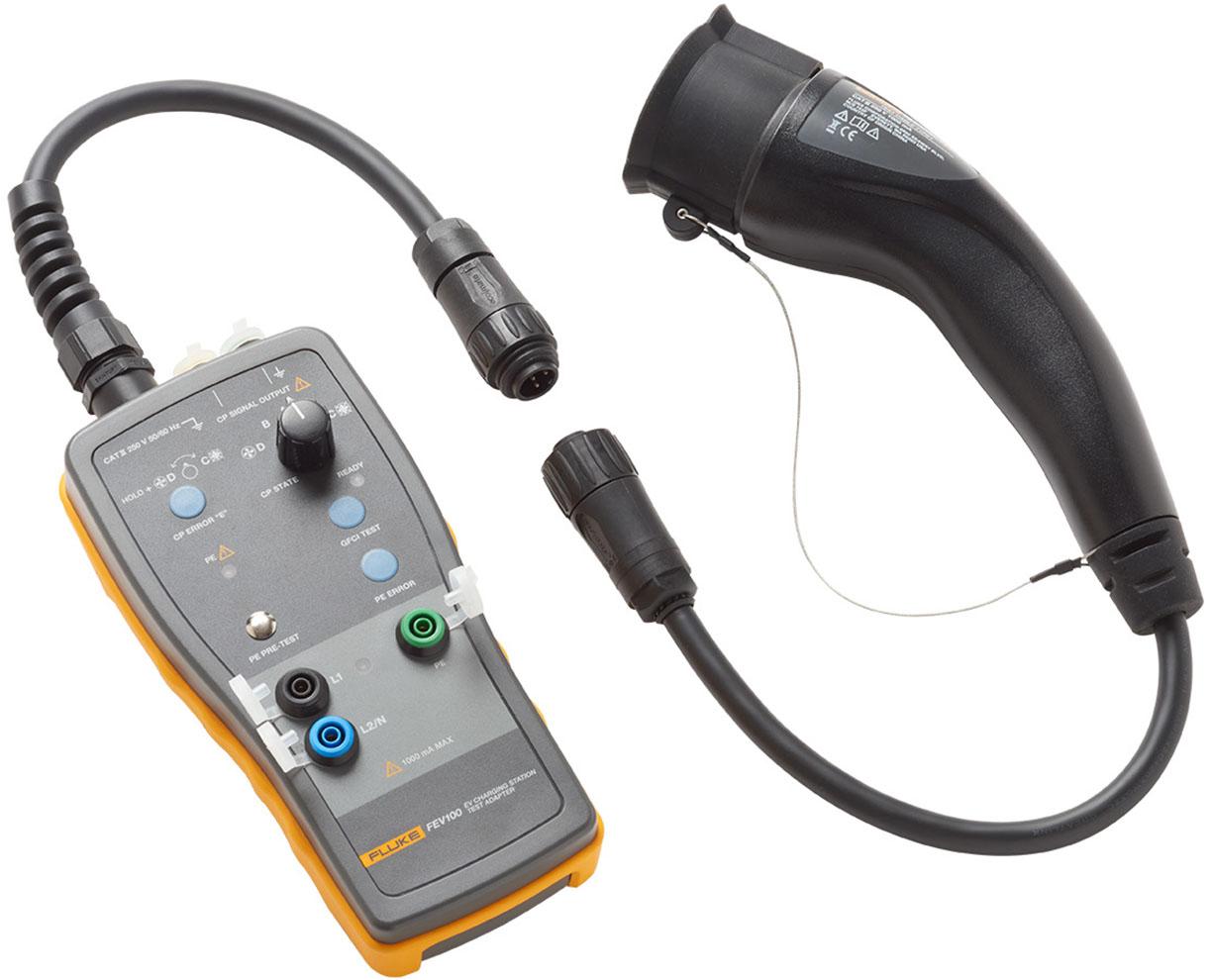

The Fluke FEV100 Electric Vehicle Charging Station Adapter Kit is designed to easily test the safety and performance of Type 1, Level 1 or Level 2 electrical vehicle AC charging stations (EVSE). This test adapter simulates the presence of an electrical vehicle, allowing technicians to conduct tests such as ground fault checks, insulation of wires, and measuring voltage and duty cycle to determine maximum available charging current .

The FEV100 can verify if an EVSE is working properly after installation, during periodic maintenance, or troubleshoot an EVSE if it is not delivering the appropriate charge. Available measurements include grounding system pre-test, phase indicator for voltage presence, CP state simulation (A, B, C, D) for Control Pilot, CP Error E simulation (CP signal short-circuited to PE), GFCI ground fault circuit interrupter test, fault voltage test in normal conditions and during GFCI test, PE Error (Earth Fault) simulation, measurements on live conductors (L1, L2/N) and PE ground conductor, and test of Control Pilot CP signal .

The adapter features an SAE J1772 socket for Type 1, 5P single-phase EV connectors rated at 16A. It operates with input voltage configurations for both 3-phase and single-phase systems at 60Hz. The output terminals are rated CAT II 250V .

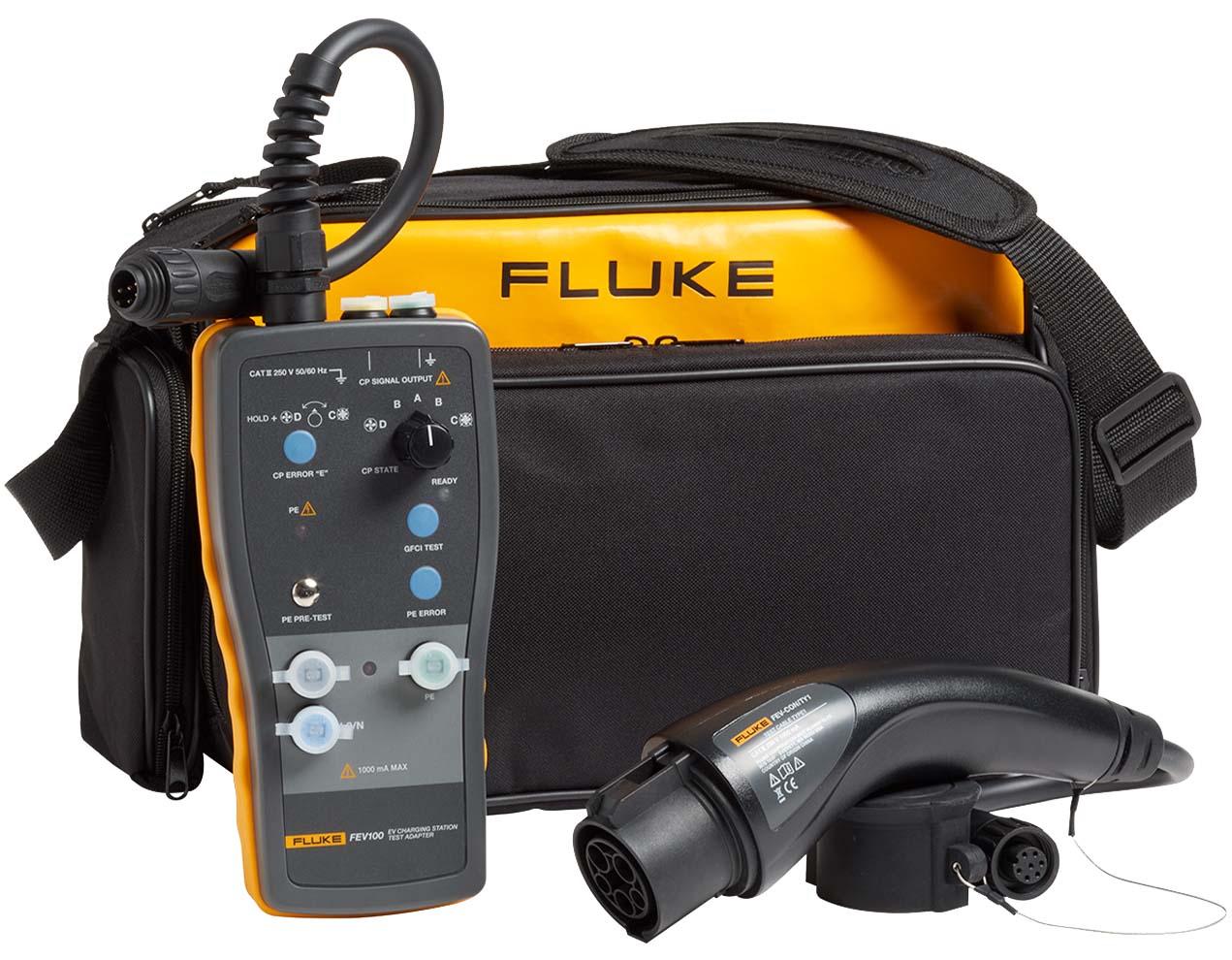

The kit is designed for use with other Fluke testing tools such as digital multimeters or oscilloscopes to perform comprehensive EVSE diagnostics .
