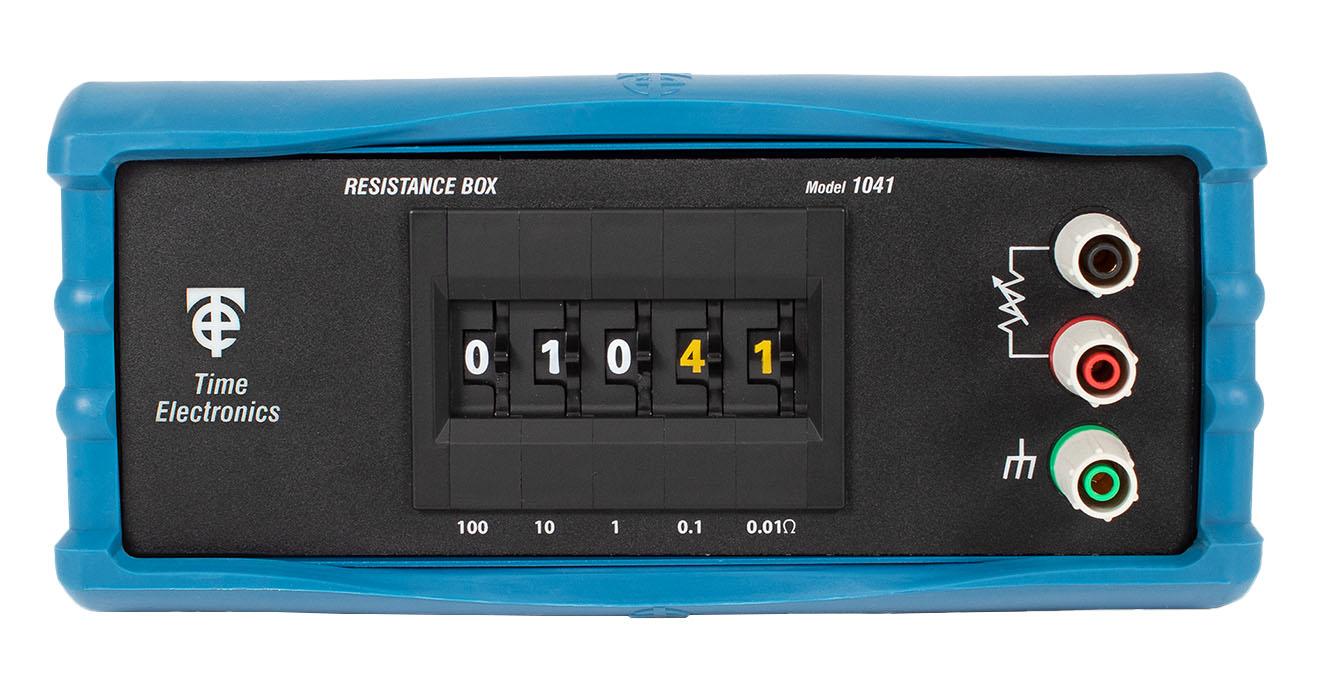

The Time Electronics 1041 is a precision low ohm resistance box designed for general laboratory work including platinum resistance thermometry. Compact and durable, it is housed in a robust metal case with a removable protective rubber cover, making it ideal for both laboratory and field use.

High stability metal film resistors achieve excellent accuracy of up to ±0.1%. A 5-digit thumbwheel switch enables simple and precise setting with clear indication of the resistance value. The 1041 offers small increment steps of 0.01Ω over a range of 0.01Ω to 1kΩ.

A multiple gold contact arrangement ensures low contact resistance and continued operation even if a contact fails. Color-coded digits (white for ohms, yellow for milliohms) make selecting and reading settings easy. Safety terminals are compatible with 4mm shrouded plugs, standard plugs, bare wires, and spade terminals.

Key Features

• Range: 0.01Ω to 1kΩ
• Resolution: 0.01Ω steps
• Less than 60mΩ residual resistance
• Accuracy up to ±0.1%
• 1 watt per resistor
• Temperature coefficient: 50ppm/°C
• 5-digit thumbwheel switch with clear readout
• Color-coded digits for easy identification
• Safety terminals (4mm)
• Suitable for PRT/RTD simulation

Applications

• Platinum resistance thermometry
• Calibration standard for site and workshop use
• PT100 instrumentation testing
• Low resistance measurement verification
