Product Specifications
Manufacturer: Extech
Product Number: PQ2071
Product Type: True RMS Power Clamp Meter / Power Quality Tester
Safety Rating: CAT IV 600V
Core Measurement Functions: AC Current, AC Voltage, Frequency, True Power, Apparent Power, Reactive Power, Active Power, Power Factor, Phase Angle
Clamp Jaw Opening: 2.16" (55mm)
Display: 9999 Count Dual Backlit LCD with Bargraph
Data Features: 99 Set Data Storage, USB PC Data Logging, Data Hold, Max/Min Recall
Target Applications: Power Quality Testing, Motor Maintenance, Energy Audits, Commercial & Industrial Electrical Work
Documents: Product Manual , Product Specs
Product Description

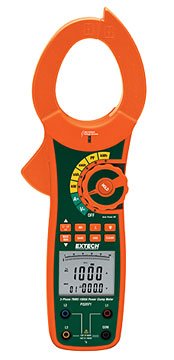

The Extech PQ2071 Clamp Meter operates as a True RMS Clamp Meter, Power Meter, Multimeter, and AC Voltage Detector. Featuring a CAT IV 600V safety rating, the PQ2071 measures AC Current, Voltage, Frequency and full power parameters including True Power, Apparent Power, Reactive Power and Active Power. A USB interface is provided for PC connection to support data logging with included software.
Core applications for the PQ2071 include:
- AC Power Quality evaluation
- Motor/Generator installation and repair
- Energy Audits
Features
-
Core measuring ranges:
- True Power (kW) up to 750kW
- Apparent Power (kVA) up to 750kVA
- Reactive Power (kVAR) up to 750kVAR
- Active Power (kWh) up to 9999kWh
- Power Factor 0.3 to 1
- Phase Angle (φ) -180 to 180°
- Frequency measurement up to 200Hz
- 2.16" (55mm) clamp jaw opening
- Large dual backlit LCD display (9999 count) with bargraph
- Manually store/recall up to 99 data sets
- Data Hold, Max/Min, and Auto power off functions
- USB interface for PC data logging with included software
- CAT IV 600V safety rated for industrial and commercial electrical work
