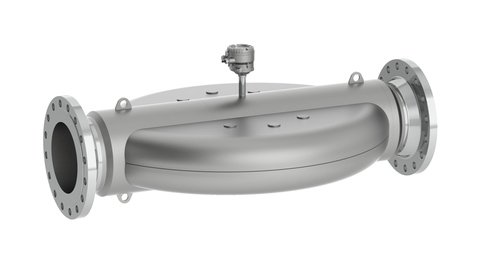

The E+H Proline Promass X 500 Coriolis flow meter provides premium accuracy (0.05%) for highest capacity and offers outstanding performance in on- and offshore applications in the oil and gas industry. Its patented four-tube system with low pressure drop delivers maximum flow capacity while maintaining measurement precision. With its innovative remote transmitter, Promass X 500 maximizes installation flexibility and operational safety in demanding environments.

Nominal diameter range DN 300 to 400 (12 to 16in). Mass flow error ±0.10% standard, ±0.05% with PremiumCal option. Volume flow error ±0.10%, gas mass flow error ±0.25%. Density error ±0.0005 g/cm³. Medium temperature range -50 to +180°C. Process pressure PN 100, Class 600. Wetted materials: measuring tube and connections 1.4404 (316/316L). Complete exterior design made of 1.4435 (316L).

Remote version with up to 4 configurable I/Os. Backlit display with touch control and WLAN access. Standard cable connects sensor and transmitter. Heartbeat Technology ensures process safety at all times. Suitable for oil and gas applications on/offshore.
