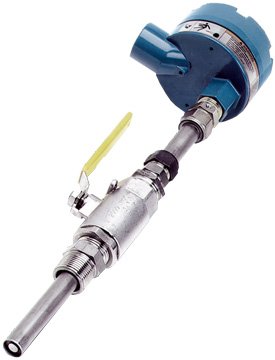

Retractable Contacting Conductivity Sensor - 0.2/1.0/cm, 200°C | Rosemount Model 140

1 / 5

Product Specifications

Manufacturer:Rosemount

Product Number:140

Type:Retractable Contacting Conductivity Sensor

Cell Constants:0.2/cm, 1.0/cm (±5% nominal)

Conductivity Range:0 to 20,000 µS/cm

Accuracy:±5% FS

Temperature Range (Standard):32 to 302°F (0 to 150°C)

Temperature Range (High Temp):32 to 392°F (0 to 200°C)

Maximum Pressure:100 psig (791 kPa abs)

Maximum Retraction Pressure:100 psig (791 kPa abs)

Insertion Length:5 inches (127 mm) max

Process Connection:1" ball valve (included)

Wetted Materials:316SS electrodes & body, PEEK insulator, Viton O-rings

Junction Box:Cast aluminum, NEMA 7D

Vacuum Rating:Air leakage <0.005 SCFM at 1.6 in Hg

Compatible Transmitters:Models 1056, 56, 54eC, 1066-C, Xmt-C, 5081-C, 6081-C

Documents: Product Manual, Product Specs

Product Description

The Rosemount Model 140 is a retractable contacting conductivity sensor designed for removal from pressurized piping and vessels without shutting down the process. The sensor is supplied complete with mounting hardware including a 1-inch ball valve, with maximum insertion length of 5 inches (127 mm).

Cell constants of 0.2/cm and 1.0/cm cover medium to high conductivity liquids from 0 to 20,000 µS/cm with ±5% FS accuracy. Available in standard (302°F/150°C max) and high temperature (392°F/200°C max) versions. Both use 316 stainless steel electrodes with PEEK insulator and Viton O-rings. Maximum pressure rating is 100 psig. A cast aluminum junction box (NEMA 7D) is mounted on the sensor back for wiring to analyzers. Vacuum rating ensures air leakage less than 0.005 SCFM at 1.6 in Hg. Compatible with Models 1056, 56, 54eC, 1066-C, Xmt-C, 5081-C, and 6081-C transmitters.
