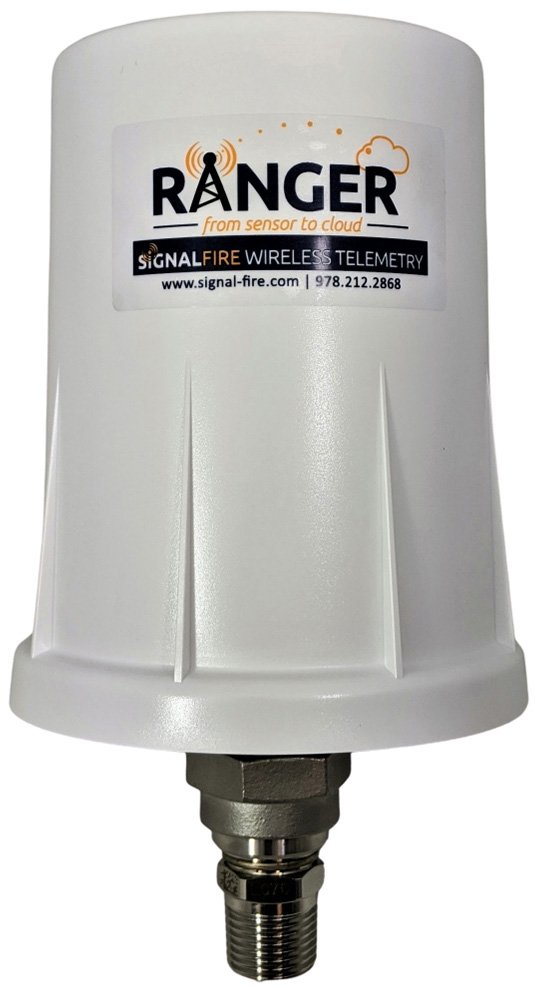

The SignalFire Wireless Telemetry Pressure Ranger transmitter uses the latest LTE CAT M1 technology for sensors and is fully integrated with SignalFire's cloud monitoring and alarming services. The Pressure Ranger includes an integrated pressure sensor and features a built-in GPS receiver that reports location of devices to the cloud, providing a map of all connected assets.

The unit is powered by a 4 D-cell lithium battery pack that is field replaceable. Pressure ranges from 2 to 20,000 psi are available. Accuracy is ±0.25% BFSL with typical stability of ±0.25% FS over 1 year. Over range protection is 2X rated pressure minimum, with burst pressure of 5X or 40,000psi (whichever is less). Pressure cycles exceed 100 million.

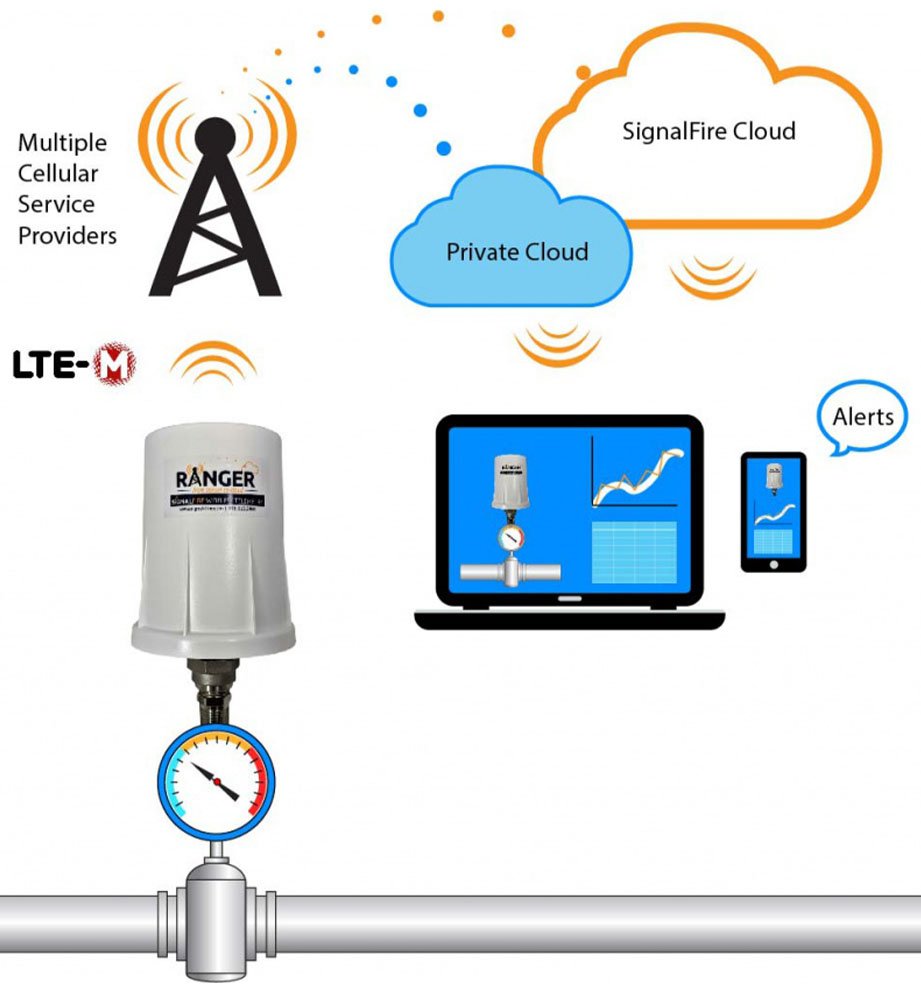

The Pressure Ranger comes complete with the mobile device ready SignalFire cloud interface to monitor, trend and receive alarms either by text or email message. The cloud platform provides for remote configuration and troubleshooting. IP64 rated enclosure. Class I Division 2 certified for hazardous locations. Process connection is 1/2" NPT standard.
