Product Specifications
Manufacturer: AECM
Product Number: 24-3001
Product Name: FlexProbe Flexible Current Probe
Product Type: Flexible AC Current Probe
Flexible Sensor Length: 24"
Maximum Measurable Conductor Diameter: 7.6"
Dual AC Current Measuring Ranges: 300AAC, 3000AAC
Output Signal: 10mV/A on 300A range; 1mV/A on 3000A range; mV output directly proportional to measured AC current
Measurement Accuracy: 1% of Reading ± 500mA
Conductor Position Influence: 4%
Connection Cable: 14" Double Insulated Cable, Dual Banana Plug Termination for Direct DMM Input
Battery Life: Up to 150 Hours
Status Indicator: Flashing LED Low Battery Indicator
Target Applications: Motor Testing & Troubleshooting, Load Monitoring, HVAC Troubleshooting, Power Analysis, Transformer Testing, Substation Testing
Documents: Product Manual , Product Specs (2 Files)
Product Description
The AECM 24-3001 FlexProbe flexible current probe is composed of a flexible sensor and an electronic module with a 14" double insulated cable. The flexible sensor is designed to fit around large and small conductors, and is capable of accessing tight or difficult-to-reach spaces. This probe is ideal for measuring AC current in a group of conductors.
AECM 24-3001 FlexProbe Flexible Current Probe Applications
- Motor testing and troubleshooting
- Load monitoring
- HVAC troubleshooting
- Power analysis
- Transformer testing
- Substation testing
Features
- 24" flexible sensor fits conductors up to 7.6" in diameter
- Dual measurement ranges of 300A and 3000AAC
- Read amperage directly on DMM display
- mV output directly proportional to AC current measured
-
Output specification:
- 10mV/A on 300A range
- 1mV/A on 3000A range
- Accuracy of 1% of Reading ± 500mA
- 4% influence of conductor position in jaw
- Up to 150 hour battery life
- Dual banana plug termination for direct input into DMMs
- Flashing LED low battery indicator

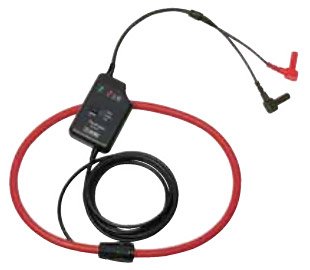

AECM 24-3001 FlexProbe Flexible Current Probe | 300A/3000A AC DMM Probe
