Product Specifications
Manufacturer: Endress+Hauser (E+H)
Product Number: Smartec CLD132
Product Type: Hygienic Inductive Conductivity Measuring System
Core Measuring Range: 100 µS/cm - 2000 mS/cm
Max Process Temperature: 284°F (140°C) for max 30min
Max Process Pressure: 174 psi (12 bar) at 194°F (90°C)
Signal Outputs: 0/4-20 mA, HART, Profibus
Ingress Protection: IP67
Core Features: Ultrafast temperature response, hygienic contamination-proof design, CIP/SIP compatible, encapsulated anti-soiling sensor
Primary Applications: Food & Beverage Industry, Phase Separation, CIP Process Monitoring
Documents: Product Manual , Product Specs
Product Description

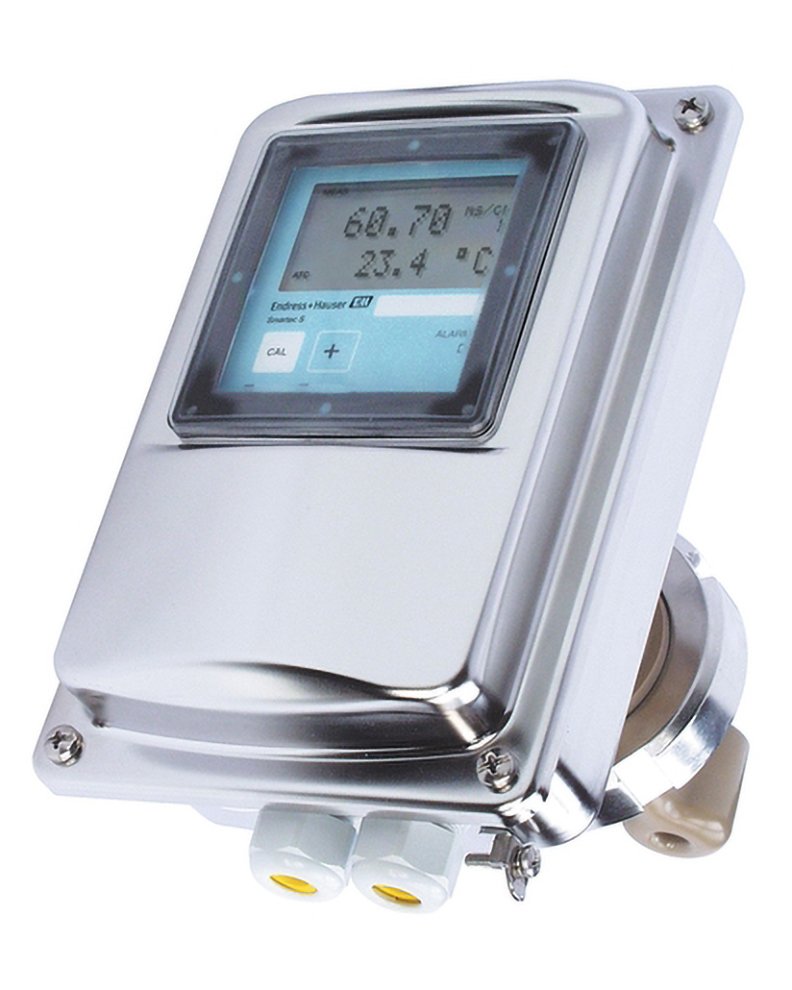

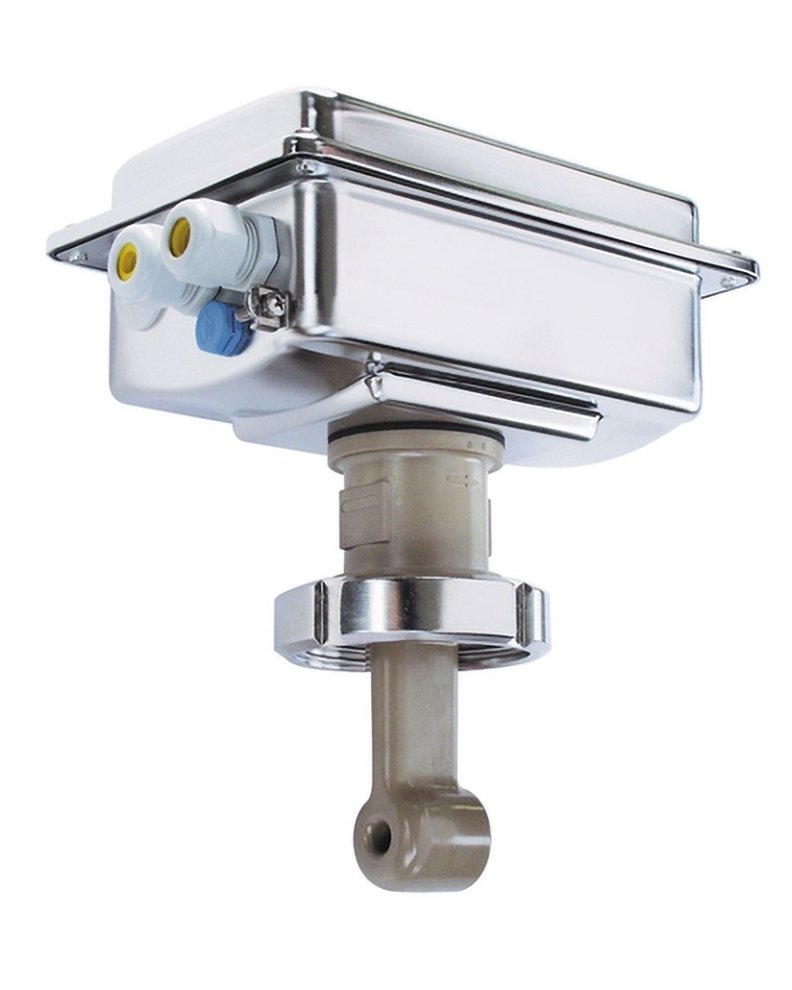

The E+H Smartec CLD132 is a measuring system for inductive conductivity in the food & beverage industry. The combination of a transmitter and a sensor is interference-free, easy-to-use and features a hygienic design that protects your products and processes from contamination. Moreover, Smartec CLD132 is equipped with a stainless steel temperature sensor that gives you an ultrafast temperature response for reliable measurement in separation applications.
Features
- 100 µS/cm - 2000 mS/cm measurement range
- Max 284°F (140°C) (max 30min) process temperature
- Max. 174 psi(194°F) (12 bar (90°C)) process pressure
- 0/4-20 mA, HART, Profibus
- Engineered for quick temperature response
- Hygienic design avoids recontamination
- Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)
- Low risk of soiling due to encapsulated sensor
- IP67
