The Panametrics moisture.IQ moisture analyzer is a multichannel, multifunction flagship model in the IQ Series of Panametrics aluminum oxide-based moisture analyzers. It measures trace moisture, pressure, and temperature in non-aqueous liquids and gases. It accepts inputs from electrochemical sensors for measuring oxygen concentrations in gases. The auxiliary inputs can accept analog inputs from any transmitter with 0/4 to 20 mA or -1 to +4 V output, including a variety of process control instruments, making the moisture.IQ a true multifunction analyzer, providing cost savings through system integration.

The moisture.IQ is available with two module bays. Each can accept a 1-channel or 3-channel module. With up to six sets of sensors coming to one set of electronics, customers can significantly reduce their cost per measurement point. Pressure measurement capability extends to 5000 psi with ±1% full scale accuracy.

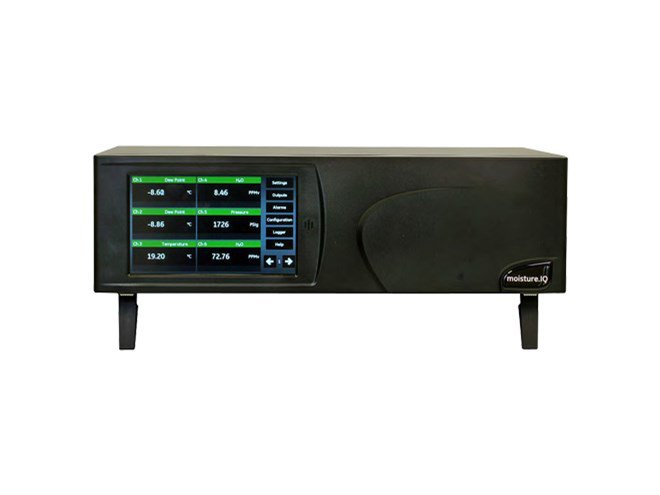

Designed with an industrial touch screen display, the graphical user interface is intuitive enough to negate the need for a user's manual. Six or twelve measurements can be displayed at one time. Multiple display pages can be set up for easy scrolling. Color-coded status gives measurement alarm information at a glance. Built-in data logging provides comprehensive data capture for analysis and reporting.

Key Features

• Measures trace moisture, pressure, and temperature
• Up to 6 channels via two module bays
• Accepts electrochemical oxygen sensors
• Auxiliary inputs for 0/4-20 mA or -1 to +4 V signals
• Moisture accuracy: ±0.5°C
• Pressure ranges up to 5000 psi
• Pressure accuracy: ±1% of full scale
• Built-in data logging

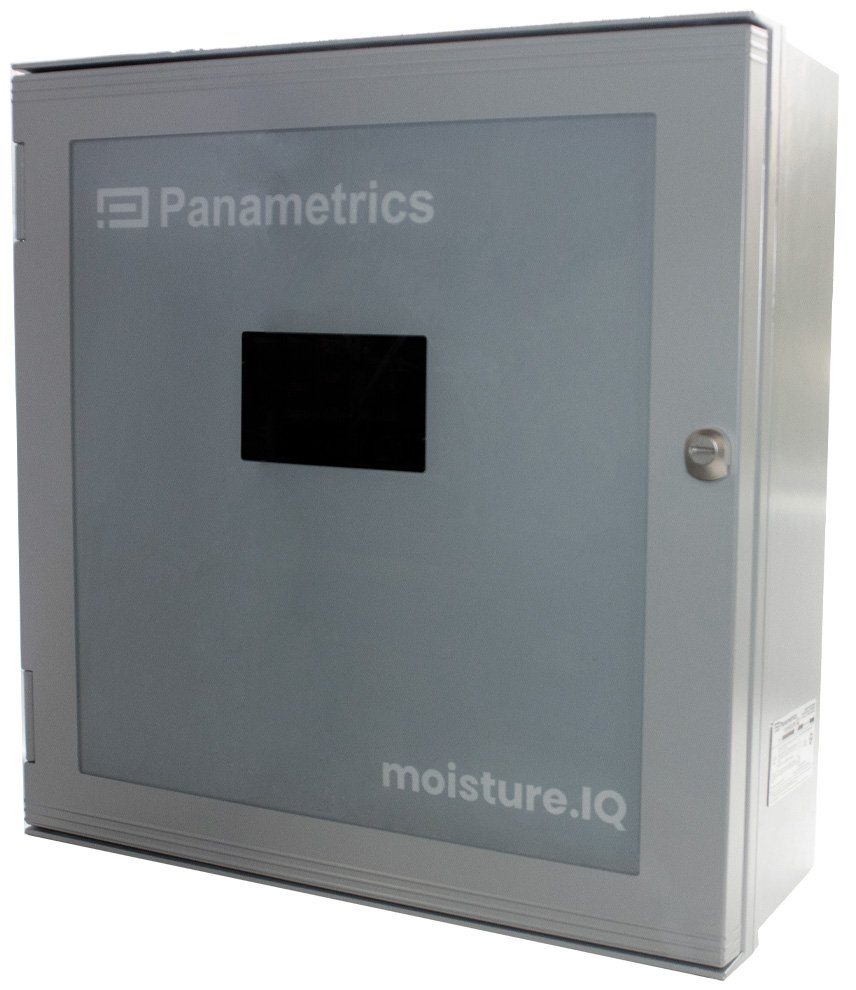

• Rack, bench, and panel mounting versions
• Touch screen display with 6 or 12 parameters simultaneously
• Color-coded status indicators
• Reduced cost per measurement point through multi-channel capability

Applications

• Petrochemical processing
• Natural gas monitoring
• Industrial gas production
• Power generation
• Semiconductor manufacturing
• Multiple point moisture monitoring systems
