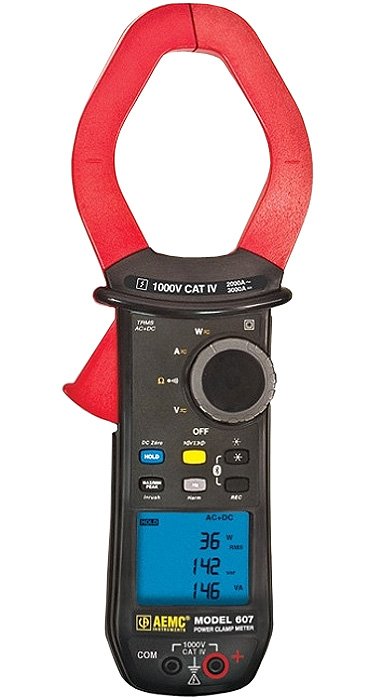

The AEMC Model 607 TRMS Power Clamp On Meter sets a new standard for safety and measurement capability unmatched by other clamp meters on the market. Safety rated at 1000V CAT IV, it is safe to operate in all electrical environments. It is rugged enough for the most demanding work environments, withstanding dust and water spray via its IP54 rating. It features an ergonomic, one-hand operable design, with function selection and button operation possible even while wearing gloves. In addition to standard measurements of volts, amps, frequency, resistance, diode checking and continuity, the Model 607 offers industry-leading functions including: AC, DC and AC+DC volts, amps and power, True InRush™, power measurements, harmonic analysis, data logging and more.

Applications include:

• General purpose electrical troubleshooting
• Motor start up analysis
• Voltage troubleshooting
• Bond and continuity checking
• Phase sequence checking
• Harmonic analysis
• Power monitoring
• Aircraft and ship board troubleshooting

Features

• IP54 Rated
• 10,000-count blue electroluminescent backlit display
• Measures up to 1000VAC (1400V peak)
• 1000VDC and AC+DC with resolution to 10mV
• Measures up to 2000AAC and 3000ADC
• Measures W, VA, var and PF for 1Φ & 3Φ balanced systems
• Measures single and three-phase power
• Measures frequency to 20kHz with 0.1Hz resolution
• Auto selects AC or DC measurement voltage
• UL 94 flame retardant self-extinguishing housing
• True InRush™ current measurement with 1mS capture
• Records up to 1000 measurements
• Wireless Bluetooth communications
• Jaw opening up to 2.36"
• Leads constructed with flexible silicone material
