Product Specifications
Manufacturer:MadgeTech
Product Number:RHTemp1000
Type:Humidity and Temperature Data Logger
Temperature Range:-40°C to +80°C (-40°F to +176°F)
Temperature Accuracy:±0.5°C (0°C to +55°C), calibrated
Temperature Sensor:Resistance Temperature Detector (RTD)
Temperature Resolution:0.01°C (0.018°F)
Humidity Range:0 to 100%RH (non-condensing)
Humidity Accuracy:±3%RH maximum
Humidity Sensor:Capacitive Polymer
Humidity Resolution:0.1%RH
Memory:32,768 readings (all channels enabled)
Reading Rate:1 reading per second to 1 per 24 hours
Battery Life:2 years typical at 25°C, 15 minute reading intervals
Material:316 Stainless Steel
Dimensions:42 mm x 24.6 mm x 24.6 mm (1.7 x 0.97 x 0.97 in)
Operating Environment:-40°C to +80°C, 0% to 100%RH
Required Interface:IFC400 or IFC406 docking station
Features:Programmable start time, fast downloads (1 min full memory), automatic dew point and vapor concentration calculations, battery life indicator
Approvals:CE
Documents: Product Specs
Product Description

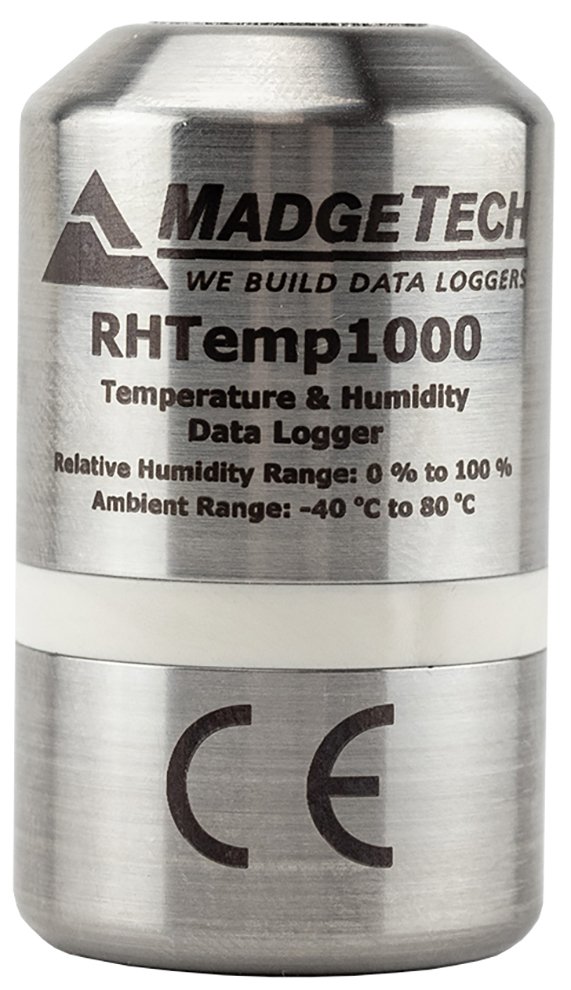

The MadgeTech RHTemp1000 humidity and temperature data logger is a next generation, battery powered, stand alone device which can be used to automatically record humidity and temperature. This all-in-one compact, portable, easy-to-use device is able to measure and record up to 32,768 humidity and temperature measurements.
The MadgeTech RHTemp1000 is ideal for use in harsh environments. The rugged stainless steel body stands up to nearly any environmental condition. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. With the battery life indicator feature, users can now easily identify low voltage and change batteries before usage.
The MadgeTech RHTemp1000 can be started and stopped directly from your computer, and its small size allows it to fit almost anywhere. A real time clock ensures that all the data is time and date stamped. An intrinsically safe version, the RHTemp1000IS, is also available for applications which require additional safety measures.
The device interfaces with the IFC400 or IFC406 docking station for quick and easy data retrieval. The MadgeTech software provides graphical, tabular and summary data analysis with automatic dew point and vapor concentration calculations. Applications include HACCP programs, environmental studies, hostile environment monitoring, and medical/pharmaceutical monitoring.
