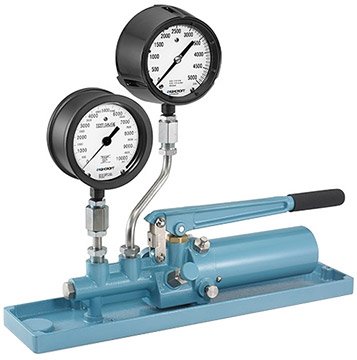

The Ashcroft 1327D is a field-portable hydraulic pressure generation and test system designed for calibration applications requiring quick comparison to a master gauge. It combines a reliable two-stage pressure pump with Ashcroft Type 1082 test gauges as comparison masters, offering maximum utility in a compact, complete test set.

The two-stage hydraulic pump features a built-in shuttle valve for rapid pressure generation on either end of the spectrum, with an integral vernier adjustment knob for precise final pressure setting. The system accommodates one to four 4.5-inch temperature-compensated test gauges with ±0.25% of span accuracy, meeting ASME B40.1 Grade 3A requirements. Gauge configurations range from single-range 150 psi units up to four gauges covering 0-10,000 psi, with equivalent metric ranges available in kg/cm², bar, and kPa.

Multiple fluid versions accommodate different applications: standard 1327D uses SAE 20 oil; 1327DH handles phosphate ester or glycol-based hydraulic fluids; and 1327DO operates with distilled water (sodium molybdate and phosphoric acid additives recommended) for oxygen service gauge calibration. O-ring seals are Buna-N for standard/water versions and ethylene propylene for the DH version.

The complete system includes a metal carrying case, all necessary connection pipes, 1/4 and 1/2 NPT female adapters, wrenches, pointer puller set, spare O-ring kit, and manual. Optional NIST traceability documentation is available for each gauge upon request with CD-4 certification.

Features

• Complete portable calibration system with pump, gauges, and accessories in single carrying case
• Two-stage hydraulic pump with integral shuttle valve and vernier fine adjustment
• 1 to 4 Ashcroft 1082 test gauges, 4.5", ASME Grade 3A, ±0.25% accuracy, temperature compensated
• Pressure range: 0 to 10,000 psi (0 to 70,000 kPa)
• Multiple fluid options: SAE 20 oil, phosphate/glycol fluids, or distilled water (oxygen service)
• Interchangeable gauge configurations for different pressure ranges
• Includes all necessary tools, adapters, and spare O-rings
• Lightweight aluminum alloy pump body, 1.5 pint reservoir
• Suitable for field, laboratory, or workshop calibration
