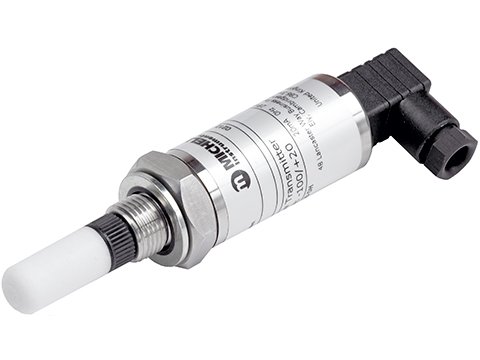

The Michell Instruments Easidew EA2 IS dew point transmitter offers measurement from -110 to 20°Cdp and a two-wire 4 to 20mA analog output with an intrinsically safe rating. The EA2 IS certifications include IECEx, CSA, FM and ATEX approvals for use in hazardous areas.

Featuring a 316 stainless steel sensor and sample block, the EA2 IS is available with G1/2 inch BSP, 3/4 inch UNF or 5/8 inch UNF process connections standard. This dew point transmitter maintains an accuracy of ±2°Cdp and the output can be configured for dew point or ppmv moisture content.

Michell Instruments' sensor exchange program makes this Easidew transmitter easy to maintain while lowering the overall cost of ownership. Each dew point transmitter is cleaned for oxygen service and includes a traceable calibration certificate, ensuring reliable and accurate moisture measurement in hazardous area applications.

Key Features

• Measurement range: -110 to 20°Cdp
• IECEx, CSA, FM, ATEX certified for hazardous areas
• 2-wire loop power connection, 12-28 V DC
• Accuracy: ±2°Cdp (±3.6°Fdp)
• 316 stainless steel sensor and sample blocks
• Multiple process connections: G1/2in BSP, 3/4in UNF, 5/8in UNF
• 2-wire 4 to 20 mA output, configurable for dew point or ppmv
• Oxygen service cleaned
• Sensor exchange program for low cost of ownership and easy maintenance
• Traceable calibration certificate included

Applications

• Hazardous area moisture monitoring
• Oil and gas processing
• Chemical plants
• Refineries
• Industrial gas production
