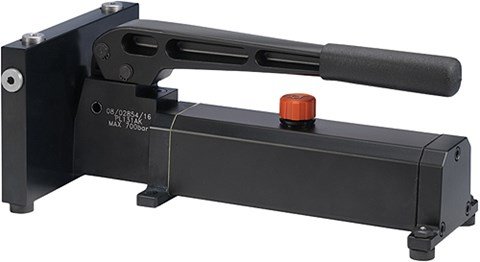

The Ametek 65-P014 Hydraulic Jack Pump is purpose-built for high-pressure oil applications. Its small footprint and light weight deliver a sensible, rugged, and portable pressure solution for field and laboratory use. The pump features a 4-pressure output manifold, matching the design of JOFRA screw pumps. A fine adjustment vernier valve and matching fittings are available as optional accessories. Standard thread connections are 1/4 inch BSP, with additional adapters available for custom setups.

This pump is a ready-to-use pressure system component for Ametek JOFRA DPC-500, APC, CPC, and IPI calibrators. For all JOFRA pressure systems, the pump and pressure indicator are fully independent modular systems. This design means pump replacement does not require the complete system to be sent in for repair, simplifying instrument maintenance. Recalibration can be performed locally using an accurate pressure reference, with no need to return the unit to the manufacturer. If factory calibration is required, only the independent indicator needs to be returned, not the pump.

JOFRA pressure calibrators are available as standard as individual indicators, or as complete turnkey calibration systems delivered in a carrying case. Complete systems include the pump, test hose, fitting set, batteries, test leads, user manual, and a NIST traceable calibration certificate.

Features

• Operating pressure range: 0 to 700 bar / 0 to 10000 psi
• Integrated 4-pressure output manifold for multi-device connection
• Compact small size and light weight for maximum portability
• Rugged construction for reliable high-pressure oil applications
• Fully compatible with Ametek JOFRA calibrators: DPC-500, HPC500, HPC502, HPC550Ex, HPC552Ex, APC, CPC and IPI
• Standard 1/4 inch BSP thread connections, with adapters available
• Optional fine adjustment vernier valve and fittings for precision control
• Modular independent pump and indicator design for simplified maintenance
• Supports local recalibration, no mandatory factory return required
