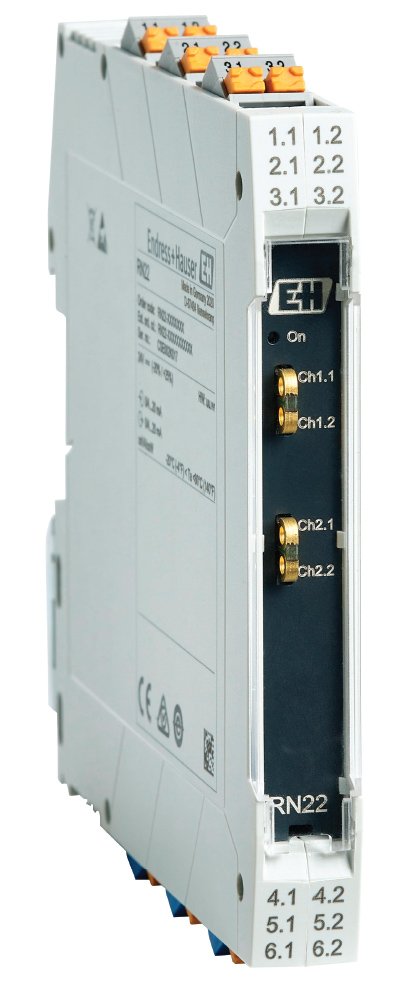

The Endress+Hauser RN22 active barrier is a versatile, intrinsically safe interface for analog instrument loops in hazardous areas. It powers 2- or 4-wire field devices while providing two galvanically isolated signal outputs—one for the primary automation system and a second per NAMUR NE 175 for process optimization, without affecting the traditional control loop.

The RN22 supports 0/4 to 20 mA and HART signals with full transparency for digital communication. A second, fully isolated output enables parallel use of the same measurement for monitoring, diagnostics, or advanced process control. Commissioning requires no manual hardware settings; all configuration is handled via software.

Available in 1- or 2-channel versions, the RN22 fits in a compact 12.5mm wide housing per channel, significantly reducing panel space. Connection options include screw or push-in spring terminals, as well as power supply via DIN rail bus connector. Front-panel lugs provide easy access for HART communicators.

With SIL2/SC3 certification and intrinsic safety approval for Zone 2 hazardous areas, the RN22 is suitable for a wide range of process industry applications.

Typical applications include:

• Intrinsically safe powering and isolation for 2-/4-wire transmitters
• Dual-output signal conditioning for process optimization
• HART communication in hazardous areas
• SIL-rated safety instrumented systems

Features

• 1 or 2 channels, 12.5mm width per channel
• Input: 0/4-20 mA / HART (feeding or non-feeding)
• Two galvanically isolated outputs: primary + secondary per NAMUR NE 175
• HART transparent with front communicator lugs
• No manual hardware settings—software configurable
• Loop power supply: 17.5V at 20mA
• SIL2/SC3 certified
• Intrinsic safety for Ex Zone 2
• Compact 12.5mm housing, DIN rail mount
• Screw or push-in terminals; optional power rail connector
• Ambient temperature: -40 to 60°C
