Product Specifications
Manufacturer: Endress+Hauser
Model Number: Liquipoint FTW23
Type: Capacitive Point Level Switch
Process Temp: -20 to 100°C (CIP/SIP 135°C/1h)
Wetted Materials: 316L sensor, PEEK insulation
Output: PNP/NPN, IO-Link capable
Documents: Product Manual, Product Specs
Product Description

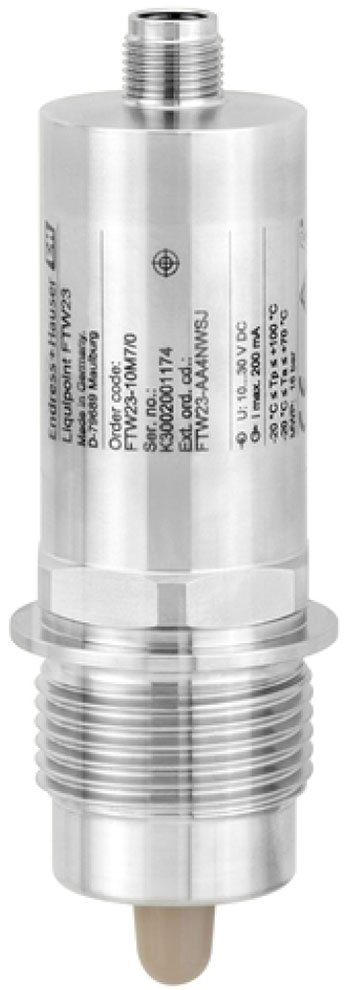

The E+H Liquipoint FTW23 level switch is a point level switch for water-based liquids and, when used with IO-Link, is also suitable for alcohol- and oil-based liquids or powdered products. It is used preferably in storage tanks, mixing vessels and pipes.
Developed and built for the food and beverage industry, the Liquipoint FTW23 meets international hygiene requirements. The Liquipoint FTW23 can be used permanently in process temperatures up to 100°C (212°F) and in cleaning and sterilization processes up to 135°C (275°F) for 60 minutes.
