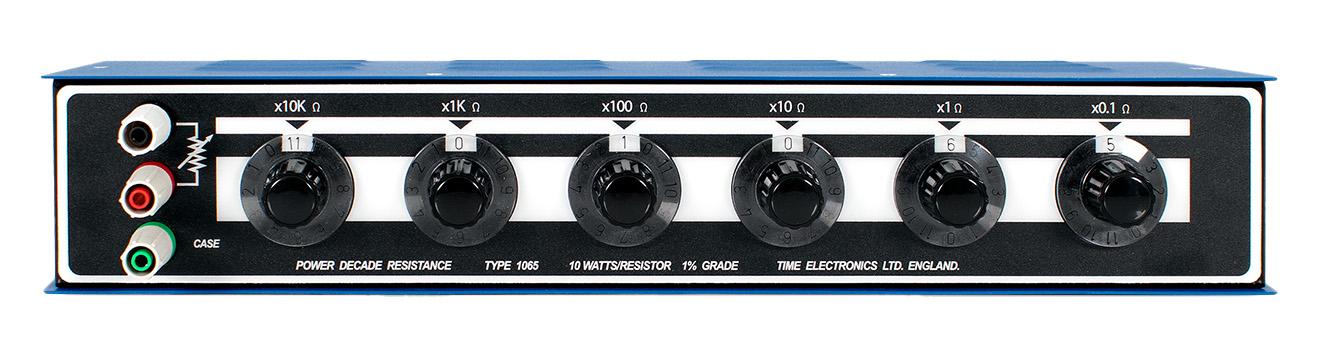

The Time Electronics 1065 resistance decade box is a high accuracy and high stability electrical testing device designed for industrial use and technical education purposes. Housed in a robust ventilated case, the 1065 can withstand arduous use while maintaining accuracy and reliability.

It features a six decade design, allowing easy variation of resistance over a range from 0.1Ω to 120kΩ. The slim line design takes up minimum bench space and is easily transportable. The high dissipation of 10W per resistor makes the 1065 suitable for power electronics applications, and the 500V maximum working voltage is ideal for select-on-test use in high voltage circuits.

Resistance is selected using six large rotary switches, enabling precise setting with clear unambiguous indication. Switch contact resistance is minimized through multi-wafer switches with four parallel, silver-plated, self-cleaning contacts per position.

Key Features

• Range: 0.1Ω to 120kΩ
• Increment steps: 0.1Ω
• Accuracy: 1%
• Power dissipation: 10W per resistor
• Residual resistance: <20mΩ
• Maximum working voltage: 500V
• Six decade design with in-line readout
• Fully screened construction
• Mechanically and electrically robust

Applications

• Power electronics testing
• High voltage circuit development
• Select-on-test applications
• Industrial and educational laboratories
