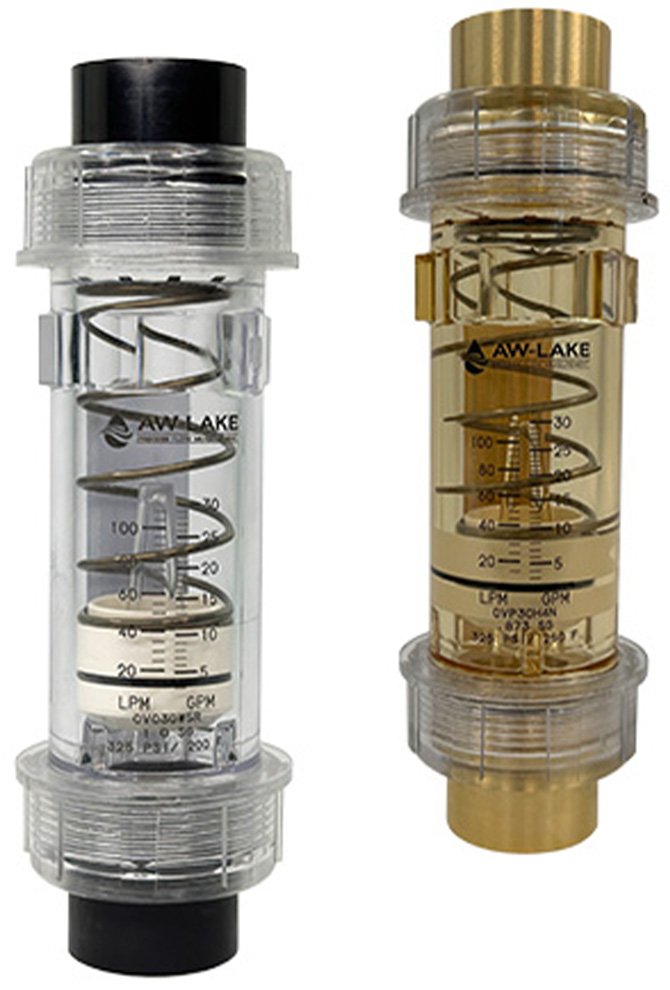

The AW-Lake ClearView flow meters provide an economical way to monitor municipal pressure water flows, observe case drain flows, and verify pump outputs. AW-Lake ClearView flow meters feature a compact and rugged design, measuring less than 8-1/4" long and 2-7/16" in diameter, with a rigid tube and union nut design. The AW-Lake ClearView flow meters allow for horizontal, vertical, or inverted installation as well.

With a ±5% full-scale accuracy, and a ±1% full-scale repeatability, AW-Lake ClearView flow meters offer a reliable solution to your flow monitoring needs. You can select from 0.5 to 5 GPM, 1 to 10 GPM, 1 to 15 GPM or 3 to 30 GPM, depending on which flow measuring range best fits your needs. All ranges feature a 10:1 turn down ratio.

The AW-Lake ClearView Flow Meter has a variable-area piston to provide accurate, dependable flow rate indication. The high contrast scale/indicator provides an easy-to-read flow rate measuring resolution along with dual units of GPM and LPM. A variety of wetted materials of construction and media calibrations are available. Maximum operating pressure is 325 psig (22.4 Bar) with temperature up to 200°F for polycarbonate body or 250°F for polysulphone body. Minimum filtration requirement is 74 Micron (200 US Mesh).
