Product Specifications
Manufacturer:ICON Process Controls
Product Number:C450 Series
Type:Double Electrode Conductivity Sensor Transmitter
Measurement Range:0 to 200,000 µS/cm
Accuracy:±0.5%
Temperature Compensation:PT1000
Outputs:4-20mA and RS485
Process Connection:3/4" NPT
Ingress Protection:IP68
Pressure Rating:150 psi
Temperature Range:14 to 176°F
Power Supply:9-36VDC
Connection:M12 quick disconnect
Documents: Product Manual , Product Specs
Product Description
The ICON ProCon C450 Series is a double electrode conductivity sensor transmitter designed for industrial applications in extreme conditions. Available with cell constants of 0.01, 0.1, 1.0, and 10.0 cm⁻¹ covering ranges from 0-100 µS/cm to 0-200,000 µS/cm. Titanium alloy electrodes and polypropylene body ensure durability in corrosive environments.
The sensor comes factory calibrated and features PT1000 temperature compensation. Output options include 2-wire 4-20mA, 4-wire, or 4-20mA with RS485, simplifying integration with control systems. The M12 quick connection eliminates the need for a separate conductivity module. IP68 rated, pressure 150 psi, temperature range 14-176°F, power 9-36VDC. No pre-amplifier required.
Applications include process control, water quality monitoring, sanitization systems, neutralization systems, effluent monitoring, pool and spa control, aquatic animal systems, and cooling towers.

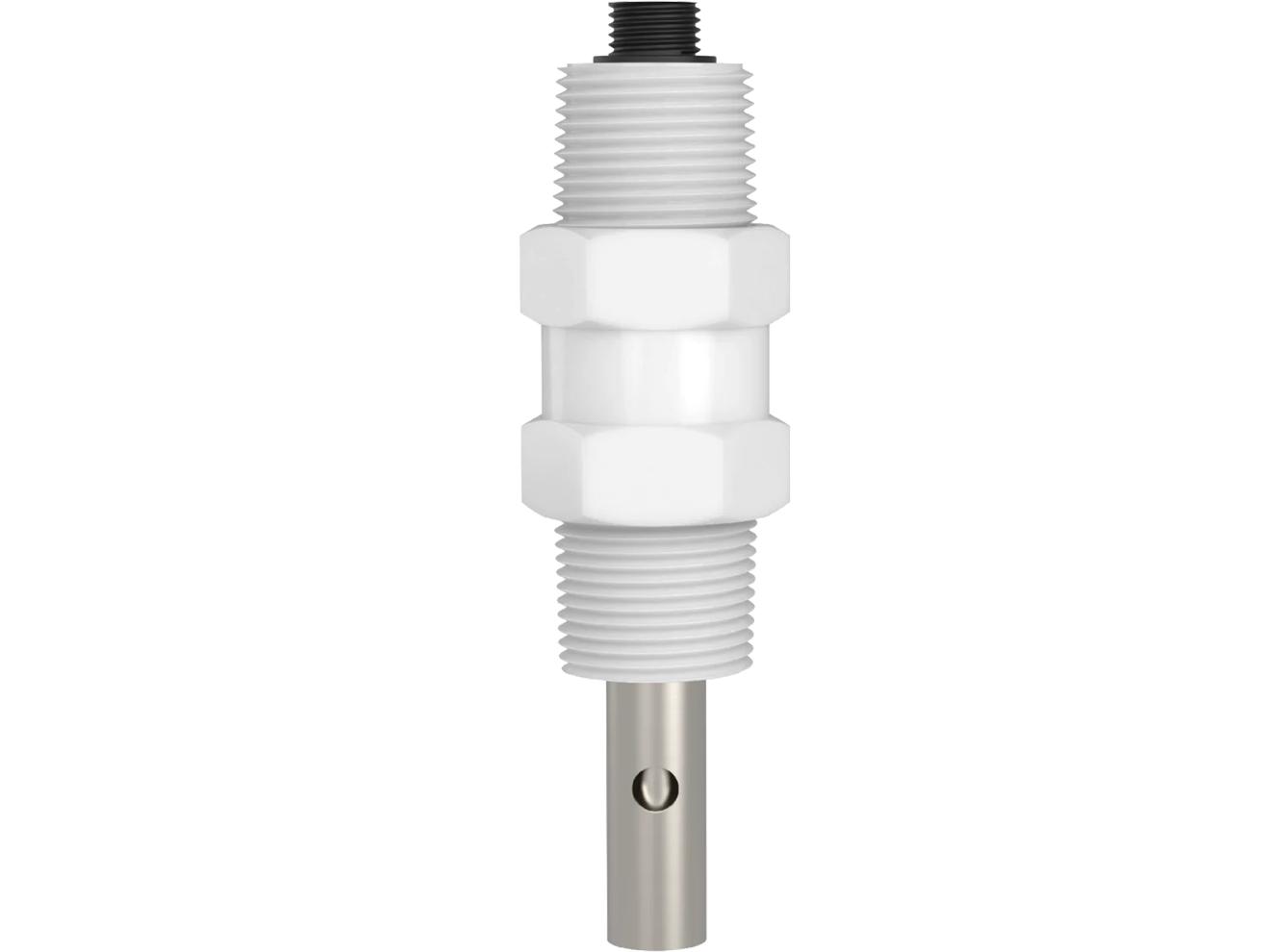

Industrial Conductivity Sensor - 0-200,000 µS/cm, RS485 | ICON ProCon C450
