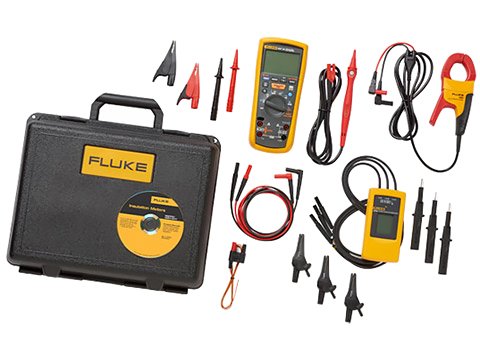

The Fluke 1587/MDT FC Advanced Electrical Troubleshooting Kit combines products specifically selected for both troubleshooting and preventative maintenance applications. Establishing preventative maintenance programs is critical to maintaining uptime of electrical equipment and can significantly reduce both planned and unplanned downtime, which can represent 1% to 3% of revenue annually for some industries .

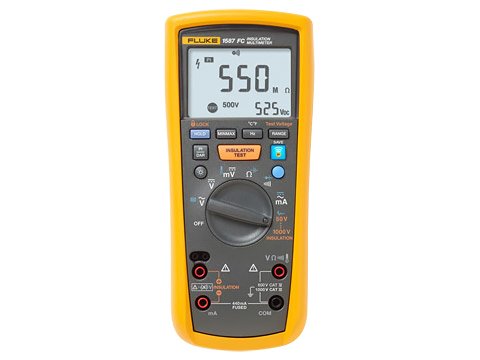

The Fluke 1587 FC Insulation Multimeter features insulation test voltages of 50V, 100V, 250V, 500V, and 1000V, with insulation resistance measurements from 0.01 MΩ to 2.0 GΩ. It includes live circuit detection that prevents an insulation test if voltage greater than 30V is detected, auto-discharge of capacitive voltage for user protection, and a large display with backlight. The meter measures AC/DC voltage, DC millivolts, AC/DC milliamps, resistance, continuity, frequency, capacitance, diode test, and temperature. It also features a VFD low-pass filter for accurate motor drive measurements, PI/DAR ratio testing, and Fluke Connect wireless capability for data logging and remote monitoring .

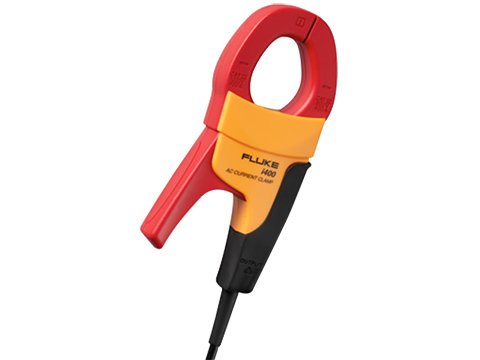

The Fluke i400 AC Current Clamp is a single-range 400A AC current clamp with current output via safety shrouded banana plugs. The division ratio is 1000:1 (1mA output per amp measured). It has a 1-400A continuous current range with 2% + 0.06A basic accuracy, and can accommodate conductors up to 32mm diameter. The clamp is CAT IV 600V and CAT III 1000V rated .

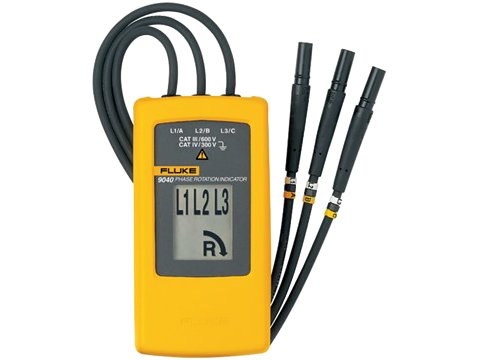

The Fluke 9040 Phase Rotation Indicator provides clear indication of 3-phase rotation via LCD display to determine correct connections for motors, drives, and electrical systems. It has a voltage range of 40-700V and frequency range of 15-400Hz suitable for commercial and industrial applications. It features IP40 rated housing, electrical safety rated EN 61010 and EN 61557-7, and CAT III 600V/CAT IV 300V overvoltage category. No batteries are required for operation .
