Product Description

The Extech SD700 data logger features a triple LCD display that simultaneously displays barometric pressure, temperature and relative humidity. The easy-to-read display, along with the selectable sampling rate, make this Extech data logger the perfect unit for a vast array of projects. Typical applications for the SD 700 include warehouses, storage rooms, freezers and water damage restoration projects.

Barometric pressure is displayed in three different units over broad ranges: 10 to 1100 hPa, 7.5 to 825.0 mmHg and 0.29 to 3248 inHg. Temperature is displayed from 32° to 122°F (0° to 50°C), with a resolution of 0.1°F/°C. The SD700 also displays humidity from 10 to 90% with 0.1% resolution.

The Extech SD700 data logger records all data onto an SD card, in Excel format. Readings include date and time stamps and can be easily transferred to a PC for further analysis. The SD700 offers storage of 2 million readings on a 2GB SD card. The unit comes complete with 6 AAA batteries, SD memory card, universal AC adapter and mounting bracket.

Extech

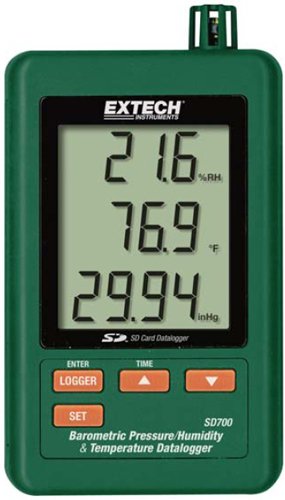

Barometric Pressure/Temp/RH Data Logger - Triple LCD, SD Card | Extech SD700

2M readings, 3 pressure units, 5-600s sampling
MPN/Series: SD700

Product Specifications

Manufacturer:Extech

Product Number:SD700

Type:Barometric Pressure/Temperature/Humidity Data Logger

Pressure Ranges:10-1100 hPa, 7.5-825 mmHg, 0.29-3248 inHg

Pressure Resolution:0.1 hPa, 0.1 mmHg, 0.01 inHg

Temperature Range:0-50°C (32-122°F)

Temperature Accuracy:±0.8°C (±1.4°F)

Humidity Range:10-90% RH

Humidity Accuracy:±4% +1% of reading

Display:Triple LCD simultaneous display

Data Logging:SD card in Excel format, 2M readings with 2G SD card

Sampling Rate:5,10,30,60,120,300,600 seconds selectable

Power:6 x AAA batteries

Dimensions:132 x 80 x 32 mm

Weight:285g

Certifications:CE

Documents: Product Manual, Product Specs
