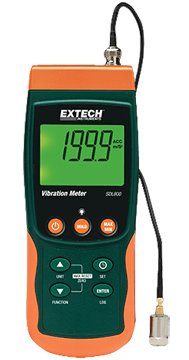

The Extech SDL800 is a versatile vibration meter and data logger designed for plant maintenance, quality control, and troubleshooting of rotating machinery such as motors, fans, pumps, and bearings . It measures acceleration, velocity, and displacement, and displays the readings on a large backlit LCD .

A key feature of the SDL800 is its standalone datalogging capability. It can record measurements directly to an SD card with a user-selectable sampling rate from 1 to 3600 seconds . The readings are date- and time-stamped and saved in Excel format, allowing for easy transfer to a PC for trend analysis and reporting without the need for special software . The meter can also manually store up to 99 readings in internal memory .

The instrument offers RMS, Peak Value, and Max Hold measurement modes and meets ISO2954 standards for vibration severity assessment . It includes a remote vibration sensor with a magnetic mount on a 1.2m (47.2") cable for flexible positioning. Additional features include a zero function for relative measurements, data hold, auto power-off, and the ability to recall MIN/MAX readings. The complete package comes with the sensor, magnetic mount, six AA batteries, an SD card, and a hard carrying case .
