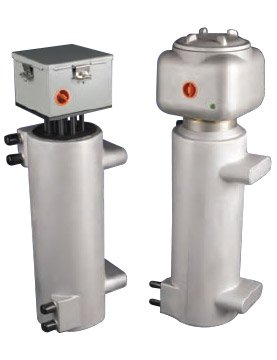

The CAS CAST-X 3000 circulation heater offers high wattage and long tubing allowing high flow volume at required temperatures through a single compact unit. It consists of two helical coiled tubes and tubular elements cast into an aluminum body, which serves as the heat transfer media between the tubular element and the process tubes .

The heater delivers 1 to 27 kW power with process temperatures to 300°C (572°F) and maximum pressure of 2500 psi (172 bar). It can operate in single-tube or dual-tube mode, with dual tubes configurable in series or parallel. When run in parallel, the unit ensures water flow up to 20 GPM .

The compact size is achieved through cast construction, which also extends heater life by keeping elements in contact with aluminum while reducing the footprint required by traditional heat exchangers. Heavy wall 316L seamless process tubing ensures high reliability and high-pressure operation .

The CAST-X 3000 is well suited for applications where indirect heating and fluid cleanliness are critical, as the heated material never contacts the heating source. This is a critical performance requirement in industries such as semiconductor, food and beverage, and high-purity processing .

Features include robust cast-in aluminum construction, non-welded design to minimize leakage, self-draining construction to reduce material degradation, and NEMA 4 or NEMA 7/ATEX housing options for various environmental requirements. Standard 316L stainless steel fluid path ensures compatibility with different materials, and K or J type thermocouples are included with integrated thermostat .
