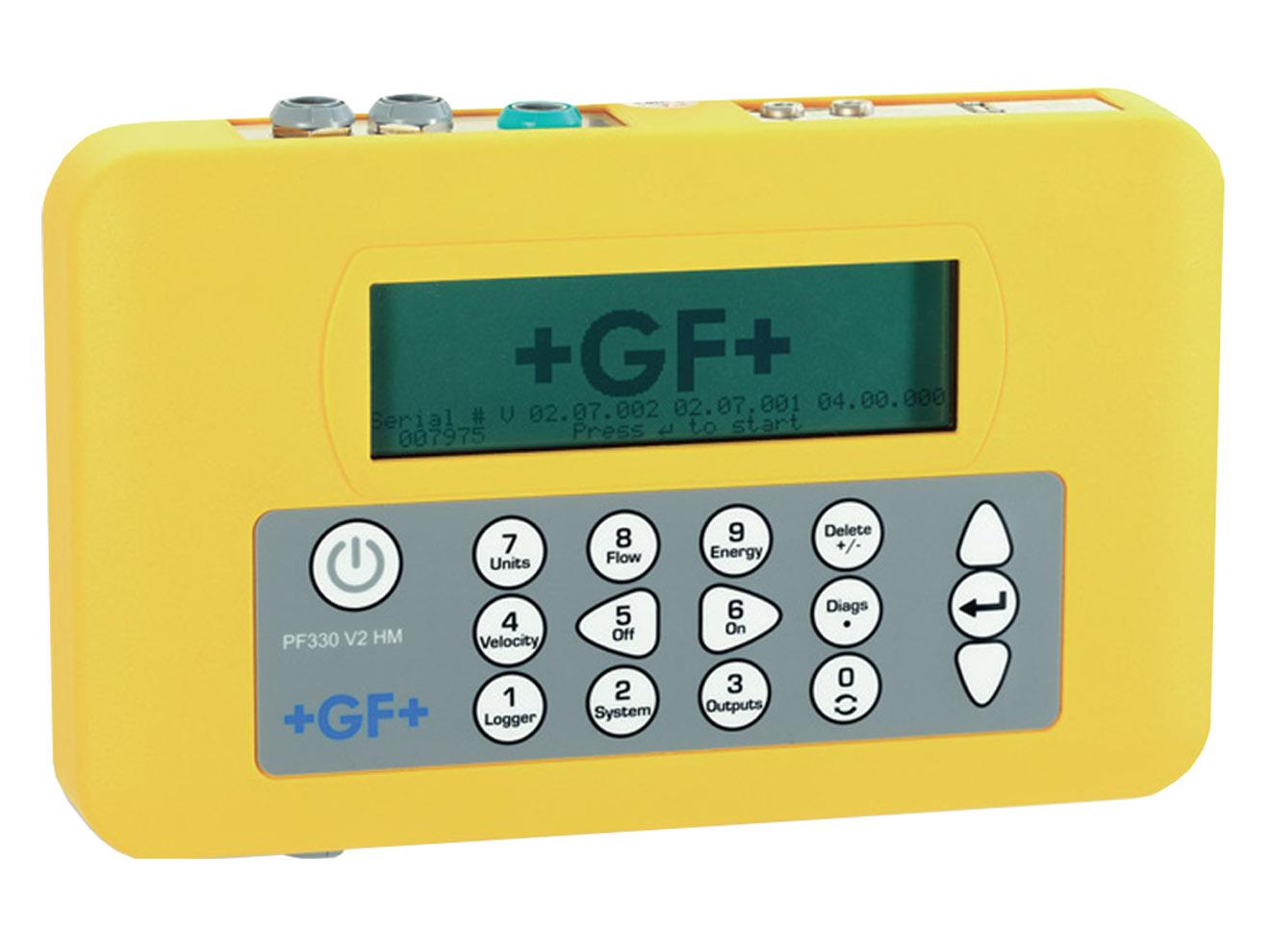

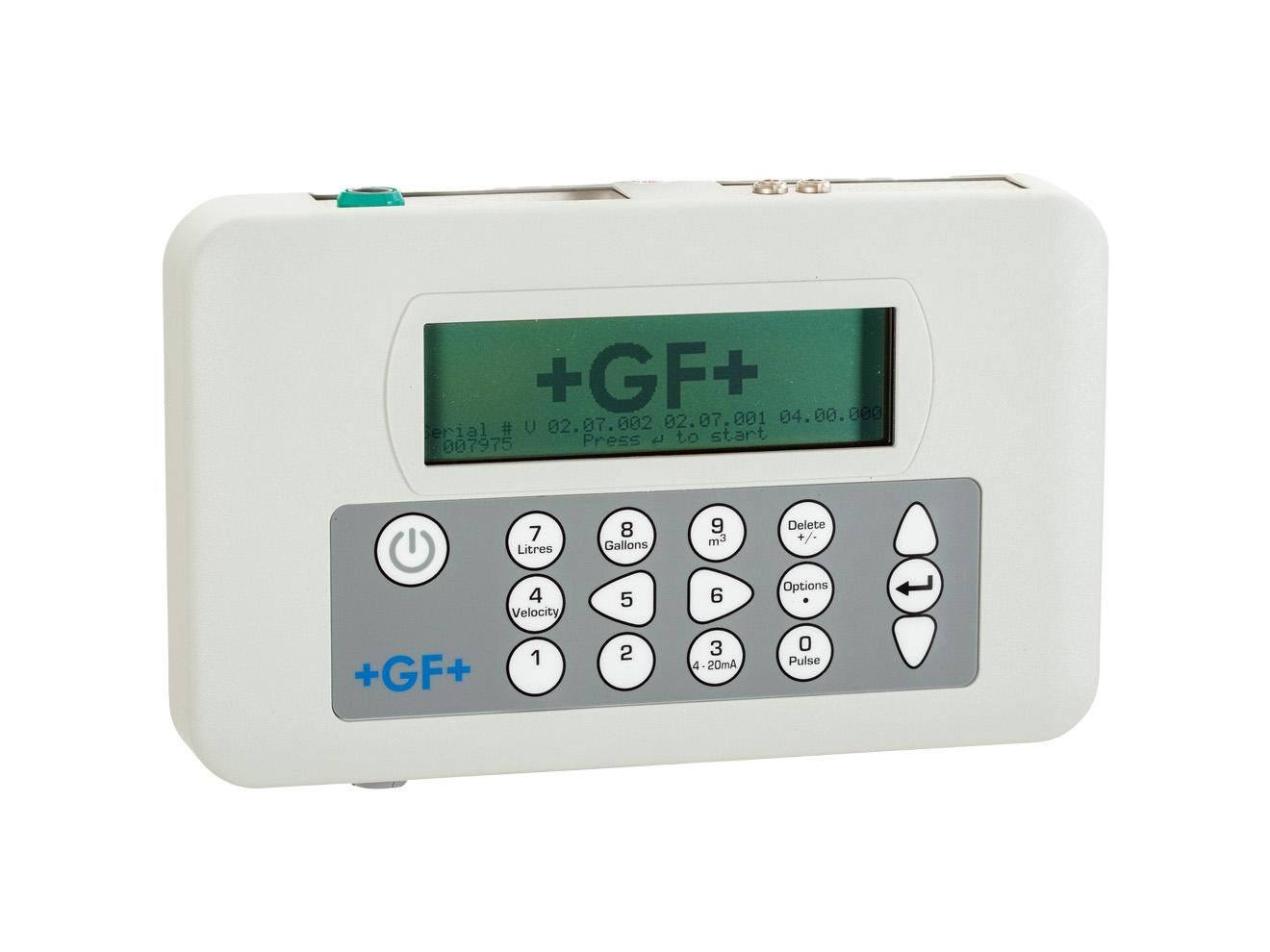

The GF Signet Portaflow 220/330 Portable Ultrasonic Flowmeter/Heatmeter brings simplicity to the noninvasive measurement of liquid flow. Portaflow offers the user quick and accurate flow measurement with its easy to follow menu and simple set up. Results can be achieved within minutes of opening the case. Compact, rugged and reliable, the Portaflow range has been designed to provide sustained performance in industrial environments.

The PF220 V2 and PF330 V2 Portable Ultrasonic Flowmeter range is designed for temporary or semistationary use. The PF330 V2 Heatmeter (HM) is an ultrasonic flowmeter equipped with Pt100 temperature sensors to calculate the energy of a heat exchanging system. Thus the device is able to work as a heatmeter / energy meter / BTU meter for temporary or semi-stationary use.

The flowmeter range enables easy, simple and accurate flow measurement on virtually any pipe including PVDF, ABS, PVC, CPVC, PP, PE, PB-Instaflex, iron and steel pipes. Measurements can be viewed directly on-site with the large graphic display or optionally logged and exported to a PC for further analysis (type PF330 V2). One 4-20 mA output and three individually configurable pulse outputs enable easy integration into 9900/9950 and higher-level systems.

Flow range is 0.1 to 20 m/s bi-directional with ±6% accuracy and ±0.5% repeatability. Response time is 500ms with LCD display. Applications include potable water, intake water, cooling water, demineralized pure water, water/glycol solutions, chemicals, leak detection, and boiler testing.
