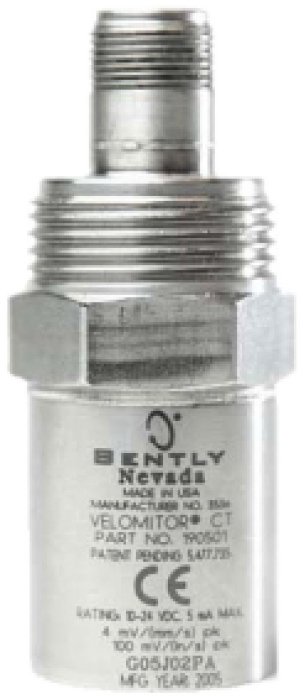

The Bently Nevada 190501 CT Velomitor Velocity Transducer is a low-frequency version of the standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Features

• 3.94 mV/mm/s (100 mV/in/s) ±5% sensitivity
• Frequency response:
  • 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB
  • 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB
• 63.5 mm/s pk (2.5 in/s pk) velocity range
• 305m (1,000ft) max cable length
• -40 to 185°F (-40 to 85°C) operating temp
