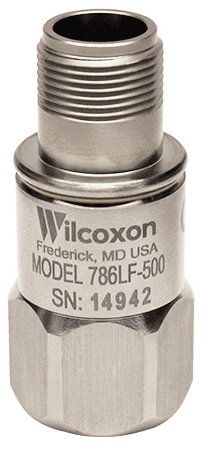

The Wilcoxon Sensing Technologies 786LF series ultra low frequency accelerometer is designed for long-term, reliable use. It features extended low frequency response and high sensitivity, and it delivers clear signals at low vibrations.

The 786LF is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting, a SF6 mounting stud (included) and either a MIL-C-5015 2-pin or M12 connector. The 786LF is manufactured in an ISO 9001 facility.

Features

• Sensitivity:
  • 786LF: 100mV/g
  • 786LF-250: 250mV/g
  • 786LF-500: 500mV/g
• Peak acceleration range:
  • 786LF: 50g peak
  • 786LF-250: 20g peak
  • 786LF-500: 10g peak
• Frequency response:
  • ±5%: 0.35 to 5,000Hz
  • ±10%: 0.25 to 8,000Hz
  • ±3 dB: 0.1 to 13,000Hz
• 30kHz resonance frequency
• Max output impedance:
  • 786LF: 100Ω
  • 786LF-250: 200Ω
  • 786LF-500: 300Ω
• 500g peak vibration limit
• 5,000g peak shock limit
• Hermetic sealing
• PZT ceramic / shear sensing element
• Output connector:
  • 786LF, 786LF-250, 786LF-500: 2 pin, MIL-C-5015
  • 786LF-M12, 786LF-250-M12, 786LF-500-M12: M12 style
