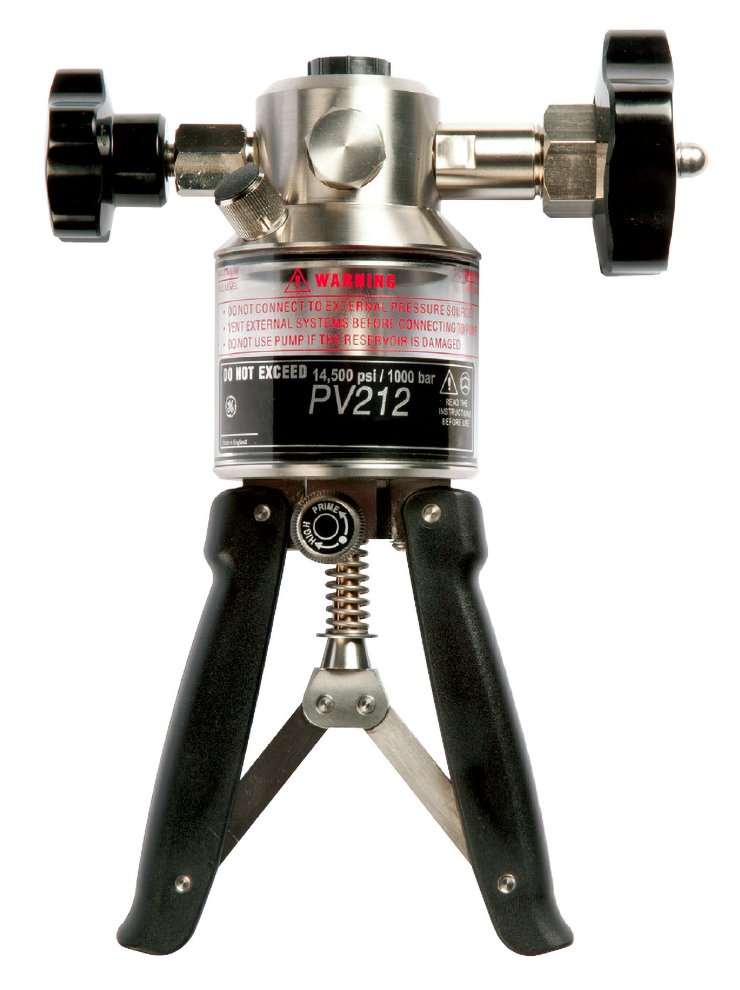

The Druck PV212 is a high-quality hydraulic hand pump engineered for quick and efficient generation of hydraulic pressures up to 15,000 psi (1000 bar). Its dual-stage design includes a selector valve that increases priming speed and significantly reduces the effort required to reach high pressures.

The pump features a 100 cc transparent reservoir that can be refilled during operation, allowing continuous use. A built-in vernier provides excellent fine control even at maximum pressure, enabling precise adjustments for calibration applications.

Construction materials including stainless steel, brass, and corrosion-resistant alloys ensure compatibility with most fluid media including distilled water and mineral oil. Optional seal kits are available for aggressive applications. An optional pressure relief valve can be added to protect connected instruments from overpressure.

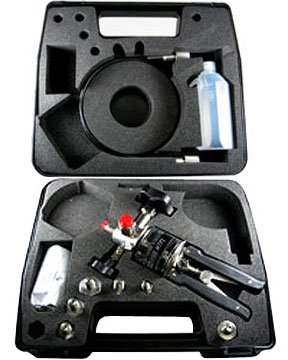

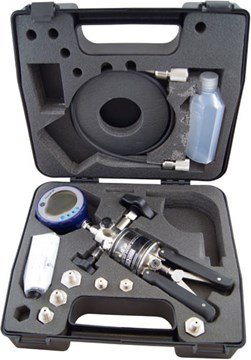

Available in two models: PV212-22 (0-10,000 psi) and PV212-23 (0-15,000 psi). The pump includes BSP connections with adapters for NPT fittings. An optional accessory kit includes a hard carrying case, high-pressure hose kit, empty fluid bottle, and NPT adapter set.

Features

• Dual-stage pump with priming/high pressure selector
• Pressure ranges: 0-10,000 psi or 0-15,000 psi
• 100 cc transparent reservoir - refillable during operation
• Built-in vernier for fine pressure adjustment
• Compatible with distilled water or mineral oil
• Corrosion-resistant materials for long service life
• Optional pressure relief valve for instrument protection
• Scissor handles for ergonomic operation
• Includes BSP connections with NPT adapters
• Dimensions: 23 x 16 x 7 cm, weight: 1.6 kg
