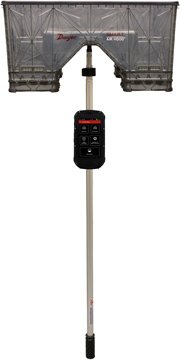

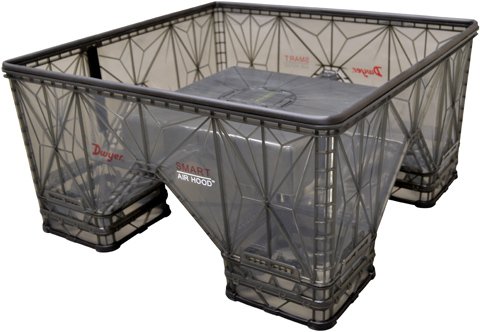

The SAH Series Smart Air Hood represents a significant advancement in air flow balancing technology. Constructed from high-strength polymer with an aerodynamic design, it is the smallest and most streamlined capture hood on the market—reducing back pressure and improving measurement accuracy.

The patent-pending Quad Flow Design Technology is based on precise control of air flow and minimization of back pressure, yielding superior ±3% accuracy across a range of 40 to 2000 CFM. The hood features Wi-Fi direct communication with a range of up to 600 feet (183 m) between the hood and a handheld test instrument, providing unprecedented mobility and flexibility during balancing tasks.

An industry first, Predictive Balancing is a method of projecting the optimal flow set point for each diffuser while balancing the HVAC system. The handheld PredictAir™ application software includes algorithms that enable Predictive Balancing to achieve best-in-class accuracy, often allowing a single technician to complete balancing tasks that previously required two.

The SAH Series also measures humidity (5 to 95% RH) and pressure (10 to 2000 mbar), providing comprehensive data for system analysis.

Typical applications include:

• HVAC system testing, adjusting, and balancing
• Supply and return airflow measurement through diffusers and grilles
• Commissioning of new HVAC installations
• Energy audits and system optimization

Features

• Quad Flow Design Technology for superior accuracy
• Predictive Balancing algorithm (industry first)
• Airflow range: 40 to 2000 CFM (±3% accuracy)
• Wi-Fi direct communication up to 600 ft (183 m)
• Measures humidity (5-95% RH) and pressure (10-2000 mbar)
• Smallest, most aerodynamic design in the industry
• One-person operation with PredictAir™ app
• 2 x 2 ft (0.61 x 0.61 m) opening
