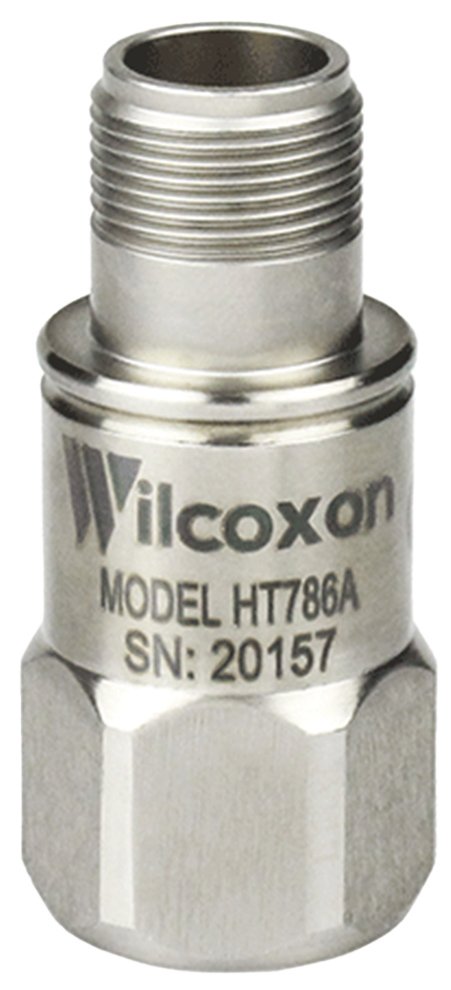

The Wilcoxon Sensing Technologies HT786A accelerometer is a high temperature rated sensor that is built with extended range components for long-lasting operation. It is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting with SF6 stud (included), and has a MIL-C-5015 2-pin connector. The HT786A is case isolated, and has a 100mV/g, ±5% sensitivity tolerance.

The HT786A is API 670 compliant and is manufactured in ISO 9001 facility.

Features

• 80g peak acceleration range
• 500g peak vibration limit
• 5,000g peak shock limit
• Frequency response:
  • ±5%: 3 to 5,000Hz
  • ±10%: 1 to 9,000Hz
  • ±3 dB: 0.5 to 14,000Hz
• 30kHz resonance frequency
• 100Ω max output impedance
• PZT shear sensing element
• Hermetic sealing
• MIL-C-5015 connector
