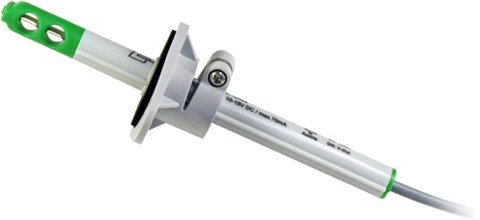

The E+E EE576 is a compact air velocity transmitter specifically engineered for accurate measurement of very low air velocities. Utilizing E+E's proven hot-film sensor technology—tested extensively in automotive applications—the EE576 offers excellent long-term stability and reproducibility with reduced sensitivity to dust and contamination compared to conventional hot-wire elements.

The transmitter is factory calibrated using a specialized low-velocity wind tunnel, ensuring optimal precision and maximum sensitivity in its operating ranges: 0 to 200 ft/min (0 to 1 m/s) or 0 to 400 ft/min (0 to 2 m/s). A linear analog output (0-5 V or 0-10 V) provides seamless integration with control systems.

Installation is fast and straightforward. An alignment strip along the probe tube, combined with a matching mounting flange, ensures correct sensor orientation. The flange allows infinite adjustment of probe insertion depth, accommodating various duct and enclosure configurations. The electronics are integrated directly into the probe tube, minimizing external components.

Typical applications include:

• Laminar flow control in clean rooms and pharmaceutical manufacturing
• Filter monitoring in HVAC and industrial ventilation systems
• Exhaust system verification in laboratories and fume hoods
• Glove box airflow monitoring for safety and process control

Features

• Hot film sensor technology for low velocity accuracy
• Compact design with integrated electronics
• Factory calibrated for optimal low-velocity precision
• Selectable velocity ranges: 0-200 ft/min or 0-400 ft/min
• Linear analog output: 0-5 V or 0-10 V
• Fast and easy installation with alignment strip and adjustable flange
• Excellent long-term stability and reproducibility
• Reduced sensitivity to dust and contamination
• Response time: 4 seconds
• IP40 protection, polycarbonate housing
