Product Specifications
Manufacturer:Fluke Corporation
Product Number:902 FC
Type:True RMS HVAC Clamp Meter
AC Current:600.0A,0.1A resolution,±2% ±5d (45-65Hz),±2.5% ±5d (65-400Hz)
AC/DC Voltage:600.0V,0.1V resolution,±1.5% ±5d (AC),±1.5% ±5d (DC)
DC Microamps:200.0µA,0.1µA resolution,±1% ±5d
Capacitance:1000µF,0.1/1µF resolution,±1% ±4d
Resistance:60.00kΩ,±1% ±5d
Temperature:-10 to 400°C,±1% ±8d
Continuity Threshold:≤30Ω
Safety Rating:CAT III 600V,CAT IV 300V
Documents: Product Specs
Product Description

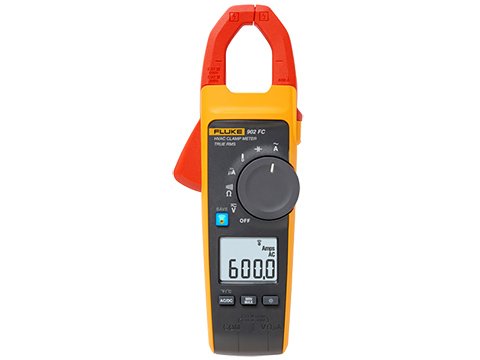

The Fluke 902 FC True RMS HVAC Clamp Meter is designed for HVAC technicians, combining essential diagnostic features with wireless Fluke Connect technology. Dual-rated CAT III 600V/CAT IV 300V enables comprehensive system testing with a single tool.
The meter measures 600A AC, 600V AC/DC, 1000µF capacitance for start/run capacitors, and 60kΩ resistance for thermistors. Dedicated 200µA DC range with 0.1µA resolution tests flame sensor rods. Temperature measurement from -10 to 400°C captures flue gas temperatures using included 80BK probe. Built-in low-pass filter ensures accurate VFD measurements.

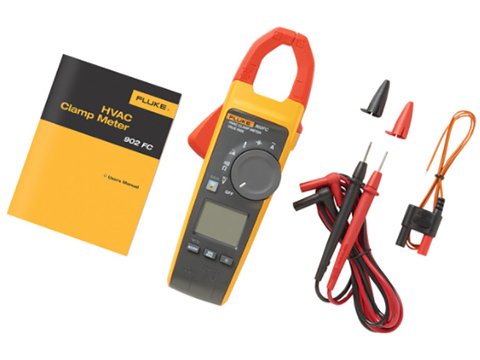

Fluke Connect wireless transmits readings via Bluetooth to smartphones for safe remote viewing outside the arc flash zone. Min/Max recording captures variations. Ergonomic design with large backlit display fits gloved hands. Includes TL75 test leads, 80BK temperature probe, soft carrying case, and 3-year warranty.
