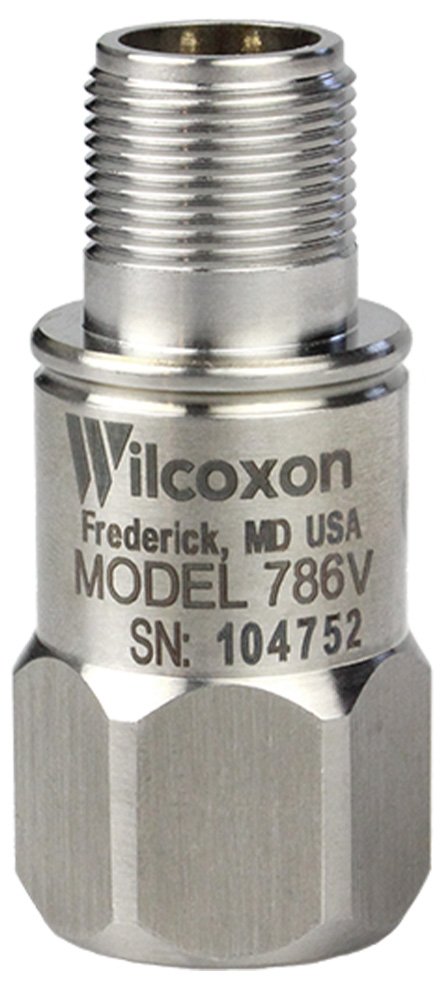

The Wilcoxon 786V is a compact, high-performance velocity sensor engineered for precise vibration monitoring in industrial environments. With a sensitivity of 100 mV/ips (±5% at 25°C) and an extended frequency range of 1 to 12,000 Hz, it provides accurate velocity measurements across a wide spectrum, enabling early detection of machinery faults and supporting predictive maintenance programs.

Constructed with 316L stainless steel and hermetically sealed, the 786V offers exceptional durability in harsh conditions. Its IP68 protection rating ensures resistance to dust and prolonged immersion, making it suitable for demanding applications such as pumps, compressors, and turbines. The sensor features a 1/4-28 UNF tapped mounting hole and includes an SF6 mounting stud for quick and secure installation. A MIL-C-5015 2-pin connector provides reliable electrical connectivity.

The 786V is API 670 compliant, meeting the stringent requirements of the American Petroleum Institute for machinery protection systems. It is manufactured in an ISO 9001 certified facility, ensuring consistent quality and reliability. Typical applications include vibration monitoring of rotating equipment, condition monitoring in oil and gas, power generation, and general industrial machinery.

Features

• 100 mV/in/sec sensitivity (±5% @ 25°C)
• Wide frequency response: ±10% 2–6,000Hz; ±3dB 1–12,000Hz
• 30 kHz resonance frequency
• PZT shear sensing element for accurate measurements
• 500 g peak vibration limit; 5,000 g peak shock limit
• 200 Ω maximum output impedance
• Hermetically sealed 316L stainless steel housing
• IP68 protection rating (dust-tight and waterproof)
• MIL-C-5015 2-pin connector for secure signal transmission
• API 670 compliant for rotating machinery monitoring
• ISO 9001 certified manufacturing
