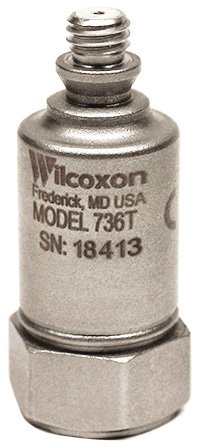

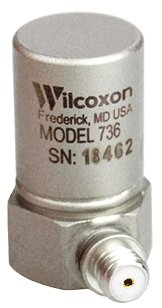

The Wilcoxon Sensing Technologies 736 series miniature high frequency accelerometer is engineered for long-term, reliable operation, especially in high-speed industrial scenarios. It is constructed with durable 316L stainless steel and features a 10-32 UNF tapped hole for mounting, with an SF1 stud included to simplify installation. The series is equipped with a 10-32 coaxial output connector and an R1 mating connector, with two models for flexible installation: the 736 (side exit connector) and 736T (top exit connector). Additionally, the 736 model is case grounded and manufactured in an ISO 9001 certified facility, ensuring consistent quality and performance.

Miniature high frequency accelerometers like the 736 series are specifically designed for machinery with gear mesh or small bearings—such as high-speed machine tool spindles and compressors. At high frequencies, these machines typically exhibit minimal displacement and velocity vibration, but may generate significant acceleration amplitudes, making high frequency accelerometers essential for accurate monitoring.

Features

• Dynamic vibration (IEPE) sensor output for precise high-frequency vibration detection
• 100mV/g sensitivity with ±5% tolerance for reliable data collection
• 50g peak acceleration range tailored for high-speed machinery monitoring
• Wide frequency response for high-frequency scenarios:
  • ±5%: 5 to 15,000Hz
  • ±3 dB: 2 to 25,000Hz
• 60Hz resonance frequency for stable operation at target high frequencies
• 150Ω max output impedance for efficient signal transmission
• 500g peak vibration limit and 5,000g peak shock limit for strong environmental adaptability
• Miniature size suitable for installation in space-constrained high-speed machinery
• 316L stainless steel construction for corrosion resistance and long service life
• Dual exit options (736: side exit; 736T: top exit) to match different installation layouts
• Case grounded design (736 model) to reduce electromagnetic interference
