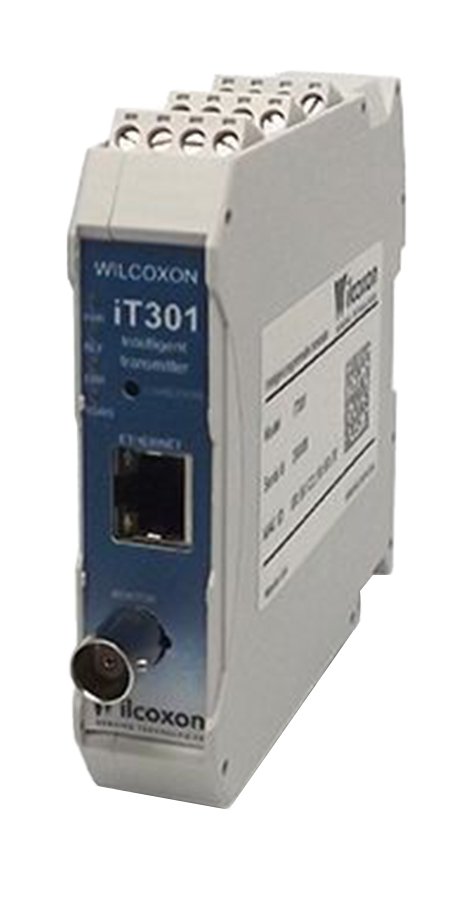

The Wilcoxon iT301 intelligent vibration transmitter interfaces standard vibration sensors with PLC, DCS, or SCADA systems. It accepts IEPE accelerometers, piezovelocity sensors, and dual-output sensors combining vibration and temperature.

The input signal splits into two independent processing bands with selectable integration and configurable filters. Results map to dual 4-20mA analog outputs, fully isolated to prevent ground loops. Detector types include RMS, peak, and true peak for capturing transients. Full-scale ranges are field-configurable.

Modbus communication over RS485 and TCP/IP is standard, with a single NC/NO relay for alarm mapping. Configuration is via built-in web server accessed through the front-panel Ethernet port—no proprietary software required. The 22.5mm DIN rail enclosure features pluggable terminals, LED status indicators, and buffered BNC sensor output for diagnostics. Operating temperature -40°C to +70°C.

Manufactured in ISO 9001 facility. CE approved, RoHS compliant.

Features

• Accepts accelerometer, piezovelocity, and dual-output sensors
• Two independent processing bands with selectable integration
• Dual 4-20 mA analog outputs, field-configurable
• Modbus/RS485 and Modbus-TCP communication
• Built-in web server for configuration - no software needed
• Single NC/NO relay for high/low alarms
• Frequency response: 0.2 Hz to 20 kHz
• Detector types: RMS, Peak, True Peak
• 6-way isolated (500 VAC) I/O ports
• Buffered BNC sensor output on front panel
• Operating temperature: -40°C to +70°C
• 35 mm DIN rail mount
