The Wilcoxon 787B series low profile industrial accelerometer delivers reliable vibration monitoring for harsh industrial environments. Constructed with 316L stainless steel, it features hermetic sealing, case isolation, and internal shielding for rugged durability. Available with MIL-C-5015 or M12 connector options, the 787B series provides IEPE output with 80g peak measurement range and wide frequency response from 0.5 to 10,000Hz.

Engineered for long-term reliability, the 787B series includes ESD and reverse wiring protection, and is manufactured in an ISO 9001 facility.

Features

• Dynamic vibration (IEPE) sensor output
• 80g peak acceleration range
• Frequency response:
  • ±10%: 1 to 5,000Hz
  • ±3 dB: 0.5 to 10,000Hz
• 22kHz resonance frequency
• 100Ω max output impedance
• 500g peak vibration limit
• 5,000g peak shock limit
• Connector options:

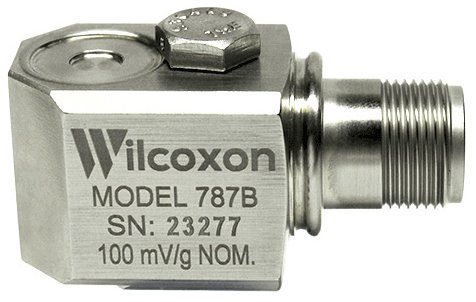

  • 787B: MIL-C-5015 2-pin with R6 mating connector, 1/4-28 captive screw with safety wire hole

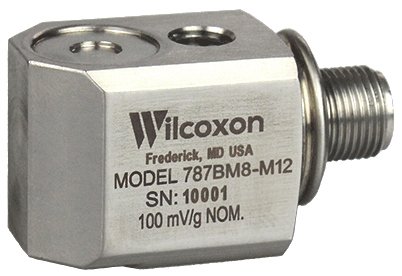

  • 787BM8-M12: M12 style output and mating connectors, M8 captive screw
• Hermetic sealing
• PZT ceramic / shear sensing element
• ESD and reverse wiring protection
• ISO 9001 facility manufacturing
