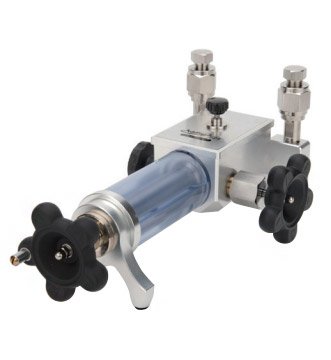

The Additel ADT 925 high pressure test pump is a hand-operated hydraulic pressure pump designed to generate pressure from -12.5psi (-0.85bar, 85% vacuum) to 6000psi (400bar). With its patented screw press technology, high pressure can be easily generated, increased and decreased smoothly. Unlike conventional hand pumps that rely on troublesome non-return check valves, the ADT 925 eliminates common leakage issues and requires minimal maintenance. Two hand-tight quick connectors are pre-installed on the pump, enabling tool-free connection and disconnection without the need for PTFE tape or wrenches. The ADT 925 is an ideal comparison test pump for calibrating pressure-measuring instruments such as test gauges, indicators or transducers in both field and laboratory environments.

The pump uses a dual-piston design, with a 1.1 in³ (18 ml) low-pressure piston for fast pre-pressurization and a 0.05 in³ (0.9 ml) high-pressure piston for fine tuning. It is compatible with oil or deionized water as the pressure medium, with mineral oil recommended for optimal performance. Its compact, lightweight design makes it easy to carry and operate in various on-site calibration scenariosAdditel.

Features

• Pressure range: -12.5 to 6,000 psi (-0.85 bar to 400 bar, 85% vacuum)
• 12.2 in³ (200ml) reservoir capacity
• Dual-piston design:
  • 1.1 in³ (18ml) low pressure piston
  • 0.05 in³ (0.9 ml) high pressure piston
• Construction materials:
  • Stainless steel ram and adapters
  • Stainless steel and aluminum main body
  • Buna-N, PTFE and copper alloy seals
• 3.7 pounds lightweight portable design
• Patented screw press technology for smooth pressure adjustment
• Tool-free hand-tight quick connectors
• 0.015 psi (1 mbar) fine adjustment resolution
• Safety pressure rating up to 9000 psi (600 bar)
• Compatible with oil or deionized water pressure media
• One-year manufacturer warranty
