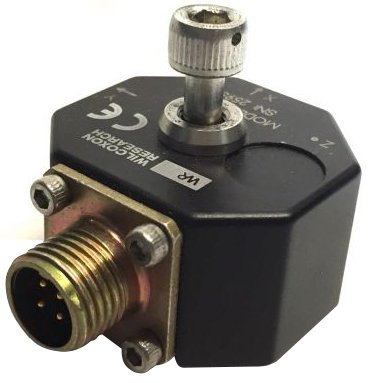

The Wilcoxon Sensing Technologies 993A triaxial accelerometer features fast and consistent data collection and reduced wiring for permanent installations, and is easy to mount. It has a rugged design and is constructed of hardcoated aluminum. It has a 1/4-28 captive socket head screw for mounting, a 4-pin Bendix output connector, and a R9W mating connector.

The 993A is case isolated and internally shielded. It is manufactured in an ISO 9001 facility.

Wilcoxon's triaxial accelerometers comprise three sensing elements within a single housing. Triaxial accelerometers enable multi-directional data acquisition in a single measurement. Proponents of 3-axis accelerometers cite the increased speed of data collection, inherently consistent readings, and a reduction in wiring for permanent installations.

Features

• 100 mV/g sensitivity
• ±10% sensitivity tolerance
• 50g peak acceleration range
• 1% amplitude nonlinearity
• 2 to 2,000Hz frequency response, all channels
• 100Ω max output impedance
• 500g peak vibration limit
• 5,000g peak shock limit
• Epoxy sealing
• PZT ceramic / shear sensing element
• 4-pin Bendix PC02A-8-4P output connector
• R9W mating connector
