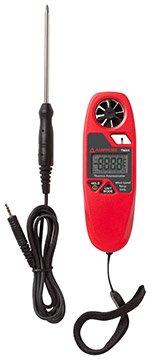

Mini Vane Anemometer - Air Velocity, Temp, Humidity | Amprobe TMA5

1 / 5

Product Specifications

Manufacturer:Amprobe

Product Number:TMA5

Type:Mini Vane Anemometer

Wind Speed Range:0.5 to 44.7 mph; 60 to 3937 ft/min; 0.4 to 38.8 knots; 1.1 to 20.0 m/s; 0.7 to 72.0 km/h; 1 to 8 Beaufort

Wind Speed Accuracy:±5% of reading

Air Temperature Range (Internal):32°F to 122°F (0°C to 50°C)

Air Temperature Range (External):-4°F to 158°F (-20°C to 70°C)

Humidity Range:5% to 95% RH

Humidity Accuracy:±3.5% RH (10-90% at 25°C)

Response Time:2 sec (wind speed); 60 sec (temp/humidity)

Display:LCD, 21 x 34 mm

Power:CR2032 battery

Auto Power Off:5 minutes (disableable)

Dimensions:136 x 46 x 17 mm

Weight:135 g

Included Accessories:External temperature probe, CR2032 battery, wrist strap

Documents: Product Manual , Product Specs

Product Description

The Amprobe TMA5 is a compact, pocket-sized mini vane anemometer designed for HVAC/R technicians and indoor air quality professionals. It measures air velocity, temperature, humidity, dew point, wet bulb, and wind chill in a single handheld instrument.

Air velocity is displayed in selectable units including mph, ft/min, knots, m/s, km/h, and Beaufort. An external temperature probe is included for duct measurements. Features include data hold, max wind speed display, and auto power off with disable function.

Applications include HVAC system balancing, ventilation testing, refrigeration maintenance, and indoor air quality assessments.
