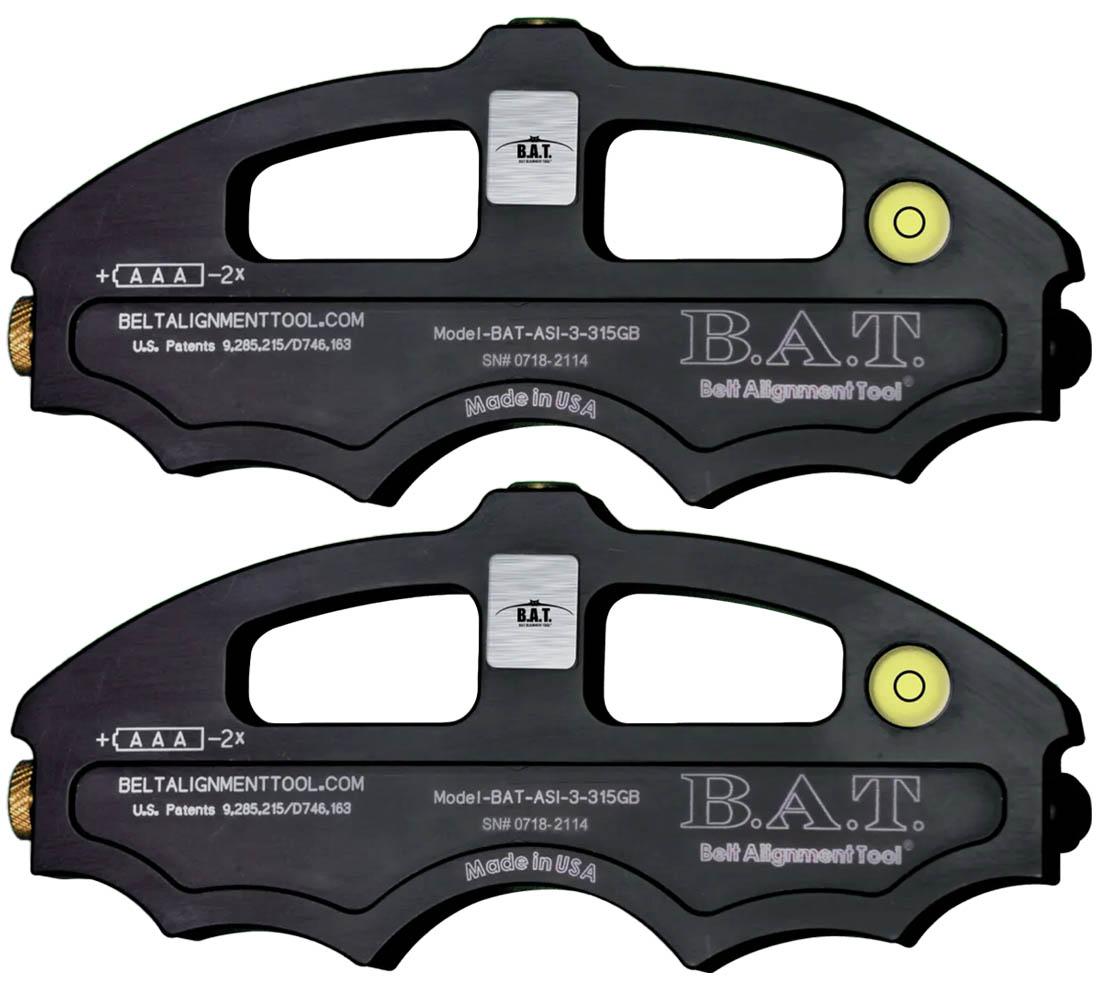

The Reliability Concepts B.A.T. (Belt Alignment Tool) is a precision laser alignment system designed specifically for belt drives, including V-belts, timing belts, flat belts, and drive chains. Featuring dual crossfire green lasers and three GlowLine targets, it enables users to quickly identify misalignment and detect mechanical defects such as bent pulleys or shafts, soft foot, worn shaft or bore, and loose bearings and fits.

The bright green laser lines (532nm, <5.0mW) provide excellent visibility even in well-lit industrial environments. With accuracy of 0.020" at 8 feet and operating range over 75 feet, the B.A.T. delivers precise alignment data for a wide variety of drive configurations. The beam spreads to 70" at 3 feet and 162" at 8 feet, covering large sheaves and multiple belt widths.

The tool features rugged 6061 flat black anodized aluminum construction with magnetic mounting that securely attaches to pulleys 2 inches and larger. Three fixed GlowLine targets are included for immediate use. With an IP64 rating, the B.A.T. is protected against dust and splashing water.

Typical applications include:

• V-belt and timing belt alignment
• Flat belt and conveyor belt tracking
• Motor base level verification
• Take-up roll and banking roller alignment

Features

• Dual crossfire green lasers (532nm, <5.0mW)
• Three GlowLine retro-reflective targets
• Accuracy: 0.020" at 8 ft
• Operating range: <75 ft
• Magnetic mounting for pulleys 2" and up
• Detects misalignment, bent pulleys, soft foot, worn bearings
• 6061 anodized aluminum construction
• IP64 rated
• 5-year warranty
