Product Specifications
Manufacturer:Wilcoxon Sensing Technologies
Product Number:General Purpose
Type:General Purpose Accelerometer
Sensitivity:100 mV/g
Sensitivity Tolerance:±5%
Output:Side Exit
Cable:16 ft J9T2A Teflon Jacketed Integral Cable
Application:General Purpose Industrial Monitoring
Availability:Usually ships in 2-3 weeks
Part Number:787F
Documents: Product Specs
Warranty:One Year
Product Description

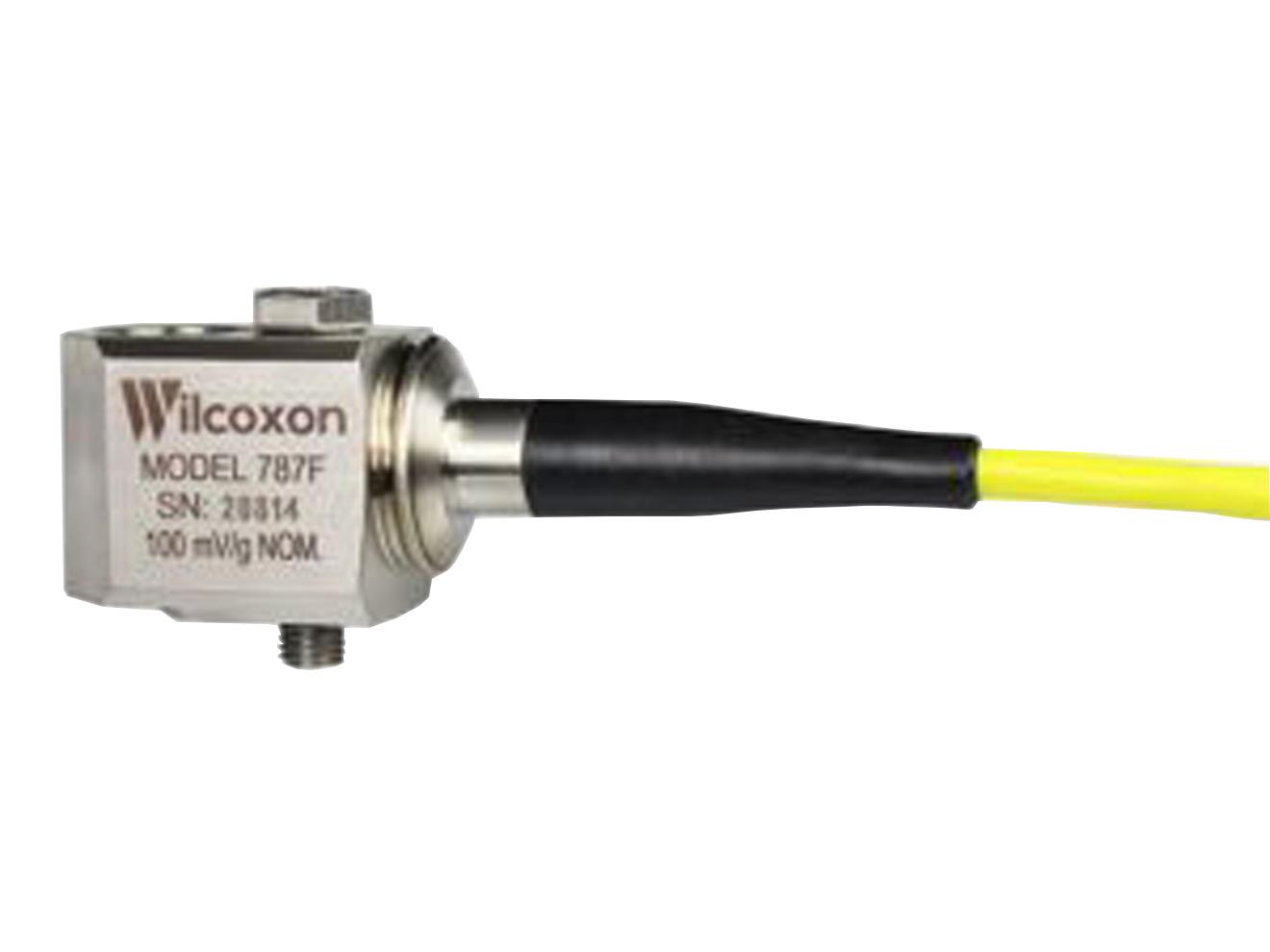

The Wilcoxon general purpose accelerometer is an industrial accelerometer sensor built for general purpose use. It has a 100 mV/g sensitivity, ±5% sensitivity tolerance and is low profile with side exit 16' J9T2A Teflon jacketed integral cable. The 787F has a 100 psi pressure rating and is case isolated.
Features
- Corrosion resistant
- Hermetic design
- 100 psi pressure rating
- ESD, EMI/RFI and reverse wiring protection
- 16 ft Integral cable
- Dynamic vibration (IEPE)
- 100 mV/g sensitivity
- ±5% sensitivity tolerance
- 0.5Hz to 10,000 Hz frequency response ±3dB
- 22 kHz resonance frequency
- -50 to 120°C temperature range
