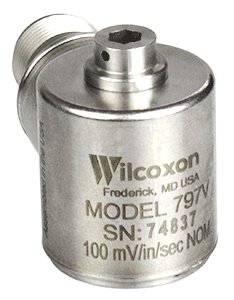

The Wilcoxon Sensing Technologies 797V high performance velocity sensor is designed for long-term, reliable use. It is constructed with 316L stainless steel, and is hermetically sealed. It features a 1/4-28 captive socket head with 0.062" diameter safety wire hole for mounting, and has a MIL-C-5015 2-pin output connector and a R6 type mating connector. The 797V is case isolated, and has 100 mV/in/sec sensitivity and ±10% sensitivity tolerance.

The 797V accelerometer is manufactured in an ISO 9001 facility.

Features

• Dynamic vibration (IEPE) sensor output
• ESD protection
• 50 in/sec peak velocity range
• 1% amplitude nonlinearity
• Frequency response:
  • ±10%: 2 to 3,500Hz
  • ±3 dB: 1.6 to 7,000Hz
• 18kHz resonance frequency
• Greater of 5,000/f or 200Ω output impedance
• 250g peak vibration limit
• 2,500g peak shock limit
• Hermetic sealing
• PZT ceramic / shear sensing element
• MIL-C-5015 2-pin output connector
• R6 type mating connector
