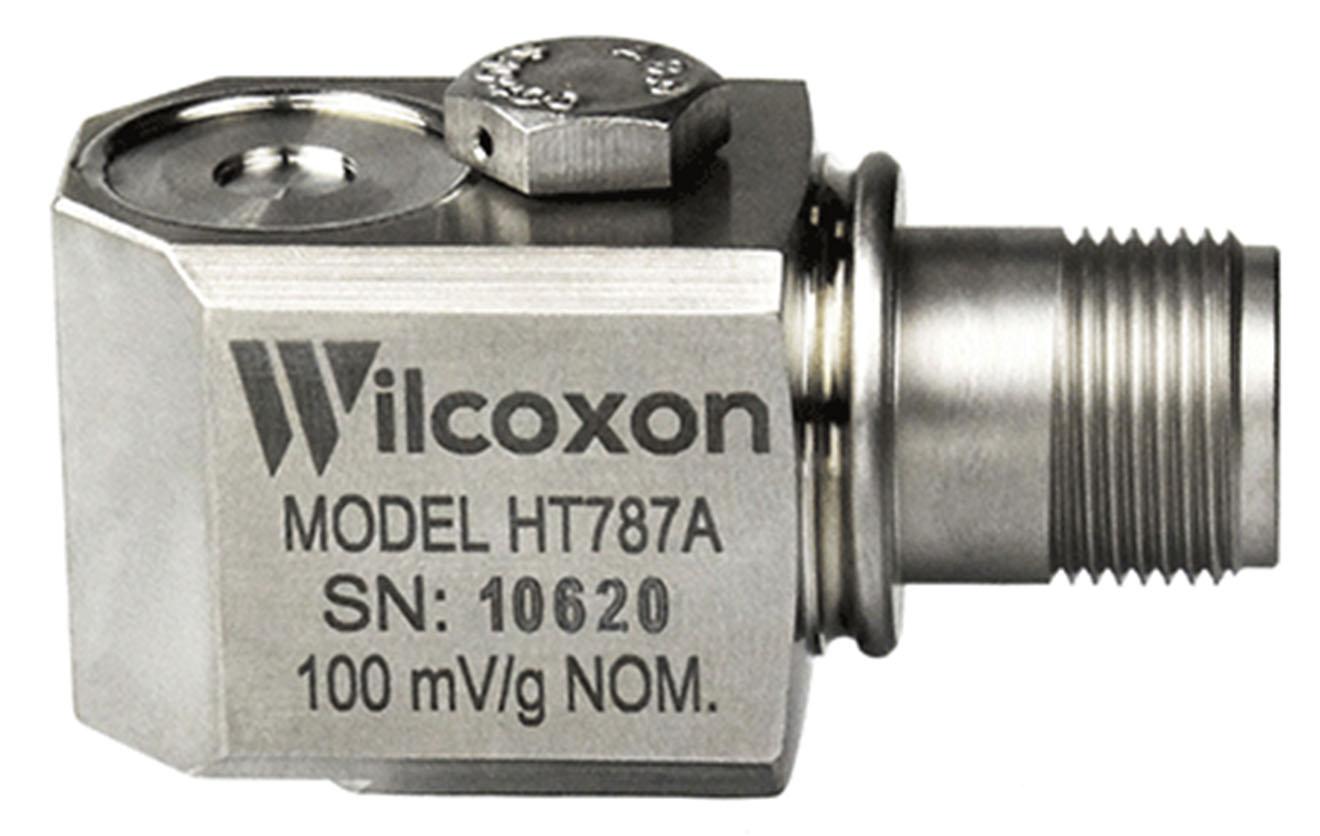

The Wilcoxon Sensing Technologies HT787A accelerometer is suitable for a wide range of industrial applications and is constructed with 316L stainless steel. The HT787A's rugged, hermetically sealed design has a 1/4-28 captive hex head screw with a 0.046in diameter safety wire hole for mounting and a 2 pin MIL-C-2015 style connector. The HT787A is case isolated and features ESD, overload, and reverse wiring protection.

The HT787A is API 670 compliant and is manufactured in an ISO 9001 facility.

Features

• 80g peak acceleration range
• 500g peak vibration limit
• 5,000g peak shock limit
• Frequency response:
  • ±10%: 1 to 5,000Hz
  • ±3 dB: 0.5 to 10,000Hz
• 22kHz resonance frequency
• Power requirements:
  • Voltage source: 18 - 30VDC
  • Current regulating diode: 2 - 10mA
• 100Ω max output impedance
• Hermetic sealing
• MIL-C-5015 connector
• PZT ceramic / shear sensing element
