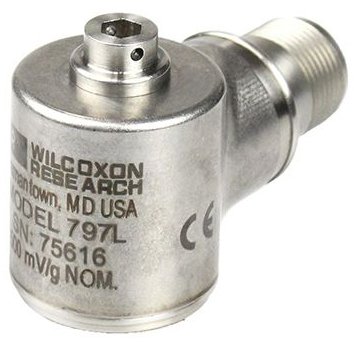

The Wilcoxon Sensing Technologies 797L low frequency accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel, is hermetically sealed, and features ultra low noise electronics. It also features a 1/4-28 captive socket head with 0.062" diameter safety wire hole for mounting, and has a R6 type output connector. The 797L is case isolated, and has 500mV/g sensitivity and ±5% sensitivity tolerance.

The 797L accelerometer is manufactured in an ISO 9001 facility.

Features

• Dynamic vibration (IEPE) sensor output
• 10g peak acceleration range
• 1% amplitude nonlinearity
• Frequency response:
  • ±5%: 0.6 to 850Hz
  • ±10%: 0.4 to 1,500Hz
  • ±3 dB: 0.2 to 3,700Hz
• 18kHz resonance frequency
• 100Ω max output impedance
• 250g peak vibration limit
• 2,500g peak shock limit
• Hermetic sealing
• PZT ceramic / shear sensing element
• R6 type mating connector
