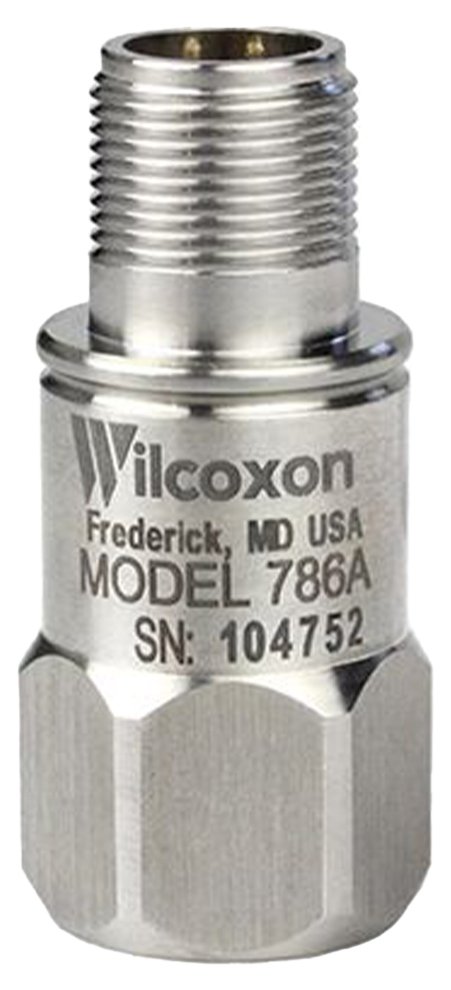

The Wilcoxon Sensing Technologies 786A series accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting with SF6 stud (included), and has a MIL-C-5015 2-pin connector. The 786A has a MTBF of 25 years, is case isolated, and has a 100mV/g, ±5% sensitivity tolerance.

The 786A is API 670 compliant and is manufactured in an ISO 9001 facility.

Features

• Peak acceleration range:

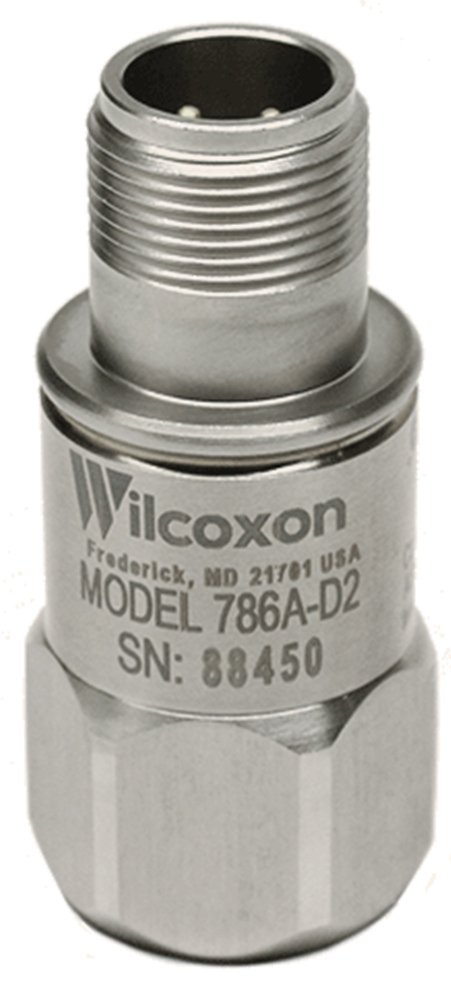

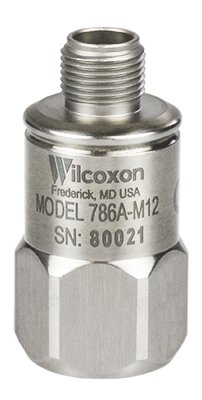

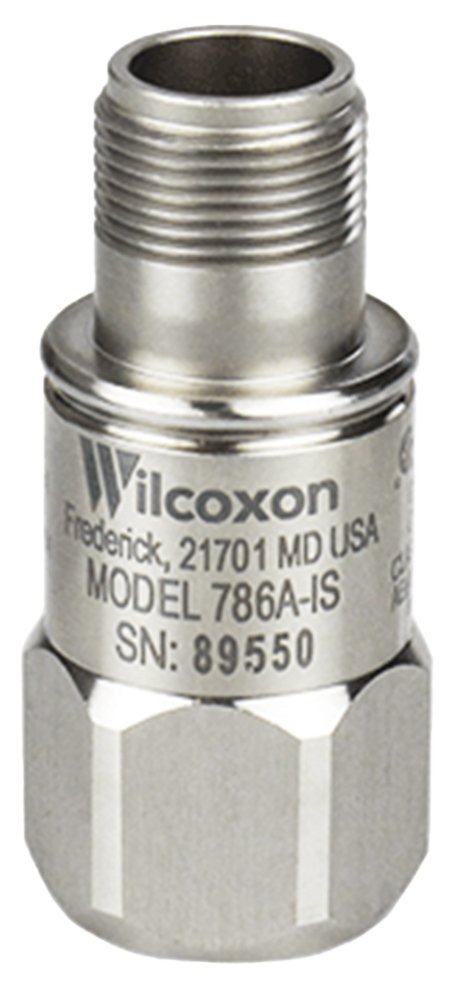

  • 786A, 786A-D2, 786A-IS, 786A-M12, 786A-M12-D2, 786A-M12-IS: 80g peak

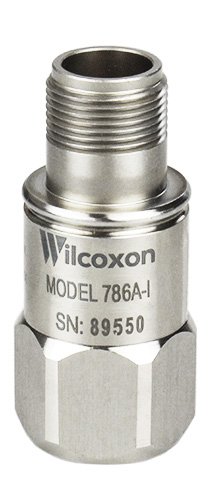

  • 786A-I: 500g peak
• 500g peak vibration limit
• 5,000g peak shock limit
• Frequency response:
  • ±5%: 3 to 5,000Hz
  • ±10%: 1 to 9,000Hz
  • ±3 dB: 0.5 to 14,000Hz
• 30kHz resonance frequency
• 100Ω max output impedance
• Hermetic sealing
• PZT ceramic / shear sensing element
• Connector:
  • 786A, 786A-D2, 786A-I, 786A-IS: MIL-C-5015
  • 786A-M12, 786A-M12-D2, 786A-M12-IS: M12 style, 4- or 5-pin
