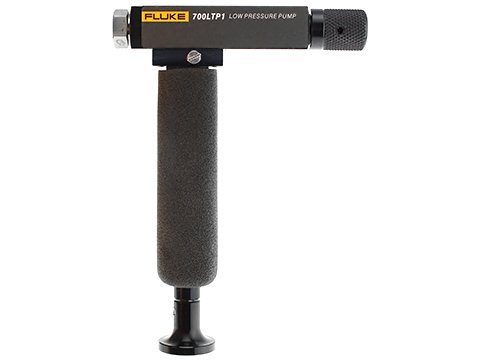

The Fluke 700LTP-1 is a hand-operated pressure test pump designed for low-pressure calibration applications. It generates either vacuum to -13 psi (-0.90 bar) or pressure to 100 psi (6.9 bar) from a single portable unit.

The pump features a fine volumetric pressure and vacuum adjuster for precise control. An adjustable pressure relief valve with slow-bleed capability allows controlled pressure release at regulated rates. Two quick-fit connectors accommodate a reference pressure module and the unit under test.

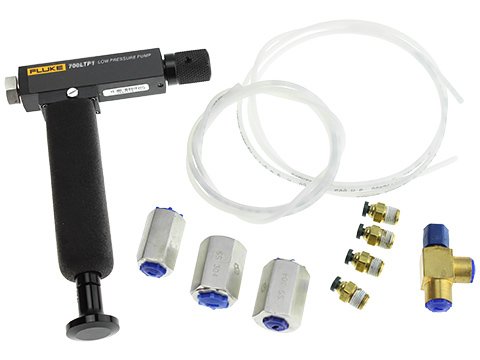

Maintenance is simplified with a design that allows cleaning without disassembly. The pump includes two 1-meter hoses terminated with 1/8" NPT female fittings, adapters for 1/4" BSP female connections, and a reference port adapter for 1/4" NPT female connection to 700 series pressure modules. A seal kit and instruction sheet are also included.

The 700LTP-1 is compatible with Fluke 700 series pressure modules and 717 pressure calibrators. Its slim profile (150 × 100 × 32 mm) and lightweight construction (226 g) make it easy to carry and use in field or workshop environments. Exposed materials include aluminum, silicon, neoprene, stainless steel, and Buna-N.

Features

• Dual-source pressure and vacuum: 0 to 100 psi and 0 to -13 psi
• Fine volumetric pressure and vacuum adjuster for precise control
• Adjustable pressure relief valve with slow-bleed capability
• Quick-fit connectors for reference module and test instrument
• Cleanable without disassembly - low maintenance
• Includes two 1m hoses, adapter fittings, and seal kit
• Compatible with Fluke 700 series pressure modules and 717 calibrators
• Compact and lightweight: 226 g, 150 × 100 × 32 mm
