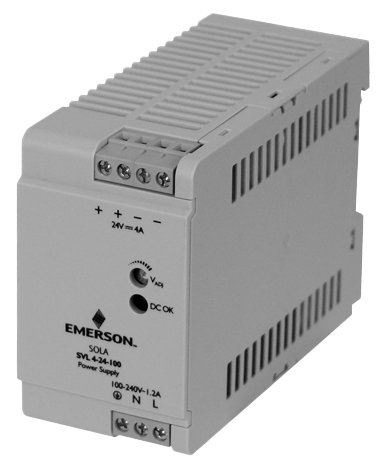

The SolaHD SVL Series Single-Phase Power Supply is designed for high volume, controlled environment applications where essential features are the only requirement. The SVL's small footprint makes it an ideal alternative to embedded open frame switchers when space is at a premium. The DIN rail mounting capability provides quicker and easier installation while allowing for design flexibility.

The power supply ranges from 15 to 480W, in 5, 12, 24, and 48V combinations.

Applications

• Test and measure equipment
• Scanners
• Instrumentation
• Printers peripheral
• ATM machines
• Vending machines
• Semiconductor fabrication equipment

Features

• Provides protection from:
  • Short circuit
  • Overvoltage
  • Overload
  • Overheating
• Power factor correction
• Convection cooling
• DC OK LED
• Blinking OCP diagnostic
• DC OK Relay for >120W models
• cULus Listed, Industrial Control Equipment, E61379
  • UL 508, CSA C22.2 No. 107.1
• cRUus Recognized Component, ITE, E137632
  • UL 60950-1/CSA C22.2 No. 60950-1, 2nd Edition
• CE
  • IEC/EN 60950-1, 2nd Edition
  • Model SVL 1-24-100, SVL 3-5-100, SVL 4-12-100, SVL 2-24-100 were evaluated for NEC Class 2 outputs
• RoHS compliant
