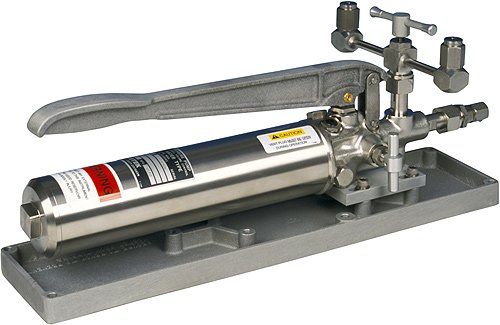

The Ametek JOFRA Type T Hydraulic Pressure Pump can be ordered configured for either oil or a water/alcohol mixture as the pressure medium, with three optional seal packages available: Buna-N, Viton, and EPT. It features a dual pressure output manifold, fine adjustment vernier valve, integrated relief valve, and dual volume control for rapid pressure rise at low pressures, and smoother, easier pumping at high pressures.

This pump is a ready-to-use pressure system component for Ametek JOFRA DPC-500, APC, CPC, and IPI calibrators. For all JOFRA pressure systems, the pump and pressure indicator are fully independent. This modular design means pump replacement does not require the complete system to be sent in for repair, simplifying instrument maintenance. Recalibration can be performed locally using an accurate pressure reference, with no need to return the unit to the manufacturer. If factory calibration is required, only the independent indicator needs to be returned, not the pump.

JOFRA pressure calibrators are available as standard as individual indicators, or as complete turnkey calibration systems delivered in a carrying case. Complete systems include the pump, test hose, fitting set, batteries, test leads, user manual, and a NIST traceable calibration certificate.

Features

• Operating pressure range: 0 to 1000 bar / 0 to 15000 psi
• Compatible with oil or water/alcohol mixture as the pressure medium
• Interchangeable seal package options: Buna-N, Viton, or EPT
• Dual pressure output manifold for simultaneous connection of test device and reference
• Fully compatible with Ametek JOFRA calibrators: DPC-500, HPC500, HPC502, HPC550Ex, HPC552Ex, APC, CPC and IPI
• Dual volume control for fast low-pressure filling and smooth high-pressure pumping
• Fine adjustment vernier valve for precise pressure tuning
• Integrated relief valve for overpressure protection
• Modular design for simplified maintenance and independent calibration
