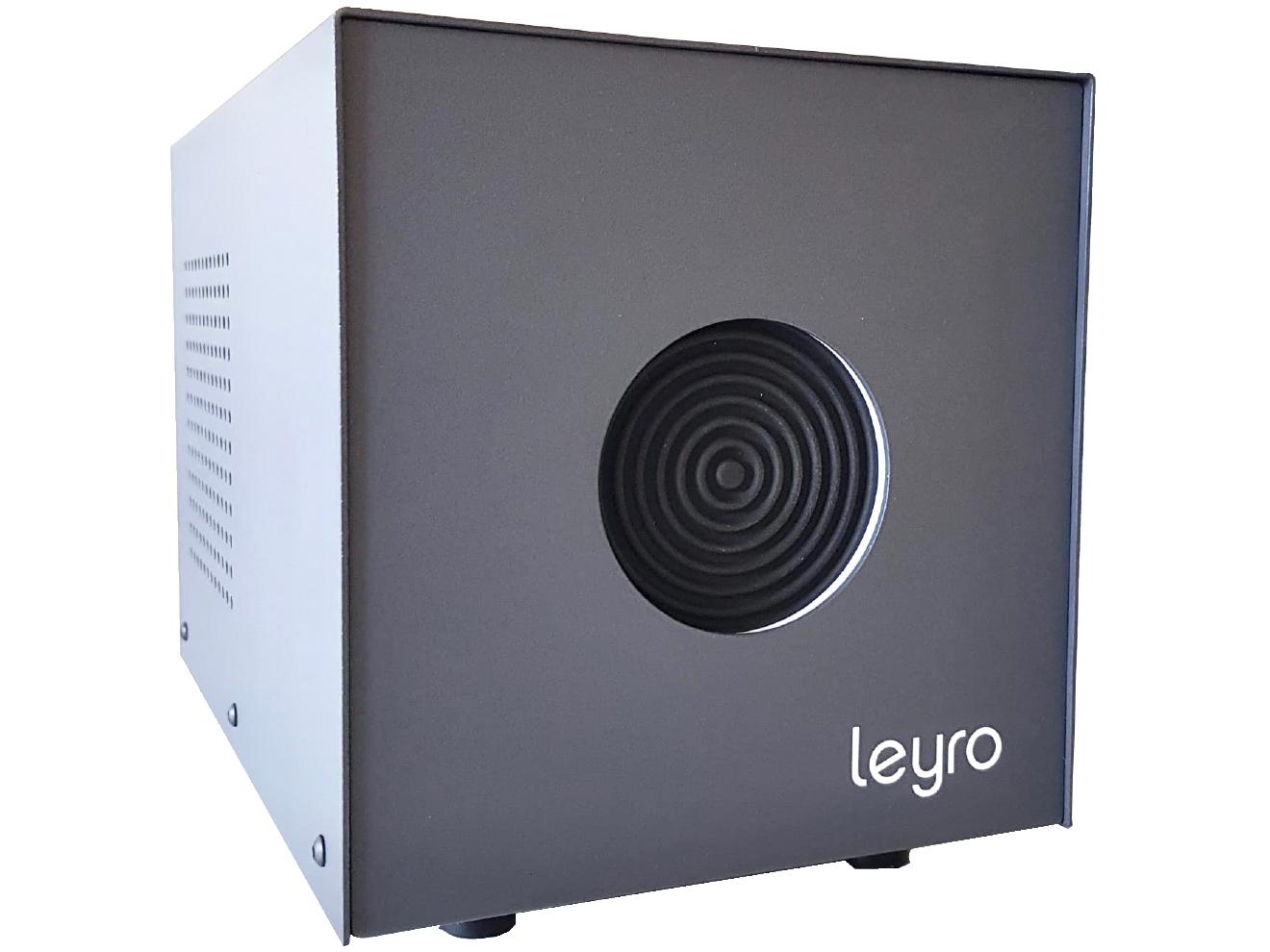

The Leyro LBB 70 is a precision blackbody calibrator designed specifically for real-time calibration of infrared thermal imaging cameras. It provides a stable reference temperature point, preventing measurement errors and drifts in thermal imaging systems.

Operating over a temperature range of 30 to 70°C (86 to 158°F), the LBB 70 delivers ±0.3°C accuracy, ±0.05°C stability, and 0.1°C resolution. The 57 mm blackbody diameter with emissivity of 0.96 ±0.02 ensures reliable and repeatable measurements. The unit is designed for continuous 24/7 operation, making it ideal for elevated body temperature screening in high-traffic environments such as airports, hospitals, and commercial buildings.

The calibrator features an M6 bottom center adapter for tripod mounting and operates on 100-240 VAC, 50/60 Hz power with maximum consumption of 86 W. Each unit includes a traceable calibration certificate.

Manufactured in Spain, the LBB 70 is CE and FCC compliant and compatible with all thermal imaging cameras on the market.

Applications

• Elevated body temperature screening in high-traffic areas
• Thermographic camera manufacturing and testing
• Fast non-invasive reference measurements
• Continuous monitoring installations with tripod mounting

Features

• Temperature range: 30 to 70°C (86 to 158°F)
• Accuracy: ±0.3°C (±0.54°F)
• Stability: ±0.05°C (±0.09°F)
• Resolution: 0.1°C (0.18°F)
• Blackbody diameter: 57 mm
• Emissivity: 0.96 ±0.02
• Continuous 24/7 operation
• M6 tripod mounting adapter
• 100-240 VAC power supply
• Includes traceable calibration certificate
• CE and FCC compliant
