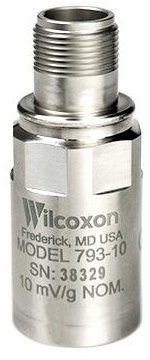

The Wilcoxon Sensing Technologies 793-10 high performance accelerometer is designed for long-term, reliable use. It features a corrosion-resistant stainless steel case and is hermetically sealed. It has a MIL-C-5015 style 2-pin output connector, a 1/4-28 tapped hole for mounting, and a R6 type connector. The 793-10 is case isolated, and has 500mV/g sensitivity and ±5% sensitivity tolerance.

The 793-10 accelerometer features ESD and reverse wiring protection. It is manufactured in an ISO 9001 facility.

Features

• Dynamic vibration (IEPE) sensor output
• 500g peak acceleration range
• 1% amplitude nonlinearity
• Frequency response:
  • ±5%: 3 to 5,000Hz
  • ±10%: 2 to 7,000Hz
  • ±3 dB: 1 to 15,000Hz
• 25kHz resonance frequency
• 100Ω max output impedance
• 500g peak vibration limit
• 5,000g peak shock limit
• Hermetic sealing
• MIL-C-5015 2-pin connector
